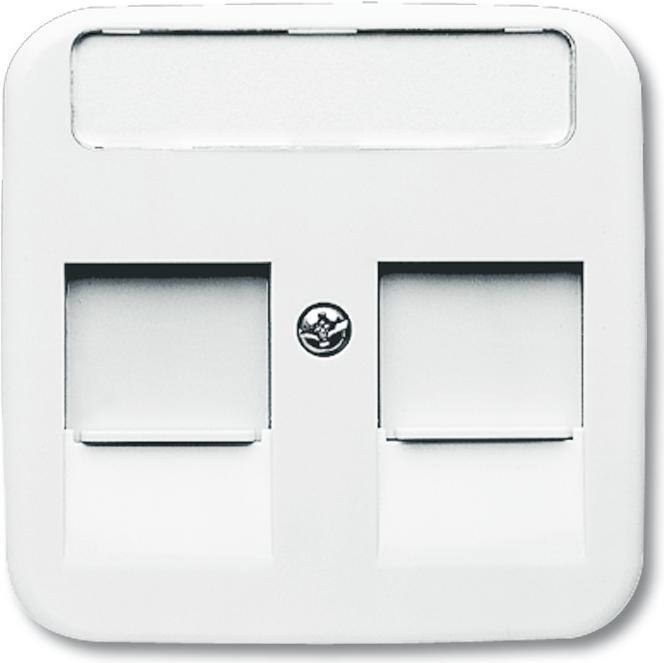

Busch-Jaeger Central Plate ws 1800-212

Manufacturer: Busch-Jaeger
Designation: Central Plate ws Mod. Jack, 2Ø, Description
Type: 1800-212
Composition: Control Element
Usage: Modular Jack
Mounting Ring: yes
With Dust Protection: yes
With Flip Cover: no
Outlet Direction: straight
Labeling Field: with labeling field
With Print: no
Mounting Type: Flush-mounted
Material: Plastic
Material Quality: Thermoplastic
Halogen-free: yes
Antibacterial Treatment: no
Surface Protection: untreated
Surface Finish: glossy
Color: white
RAL Number (similar): 1013
Transparent: no
Mounting Type: Screw fastening
Number of Modules (in modular construction): 1
With Sockets/Couplings: no
Suitable for Number of Sockets/Couplings: 2
With Strain Relief: no
Shielded Sockets: no
Shielded Housing: no
Terminal Block: no
With Lighting: no
Suitable for Protection Class (IP): IP20
Device Width: 54 mm
Device Height: 54 mm
Device Depth: 13.3 mm
Min. Depth of Device Box: 32 mm

Busch-Jaeger Central Plate ws 1800-212: additional details
As a cover for 2 modular jack inserts. With opening slider.
Fits only with item numbers 1810, 1812, 1814, 1816, 1818, 1819, and 1820.
Size of the labeling field: 41.5 x 10 mm.
EAN: 4011395743409.
