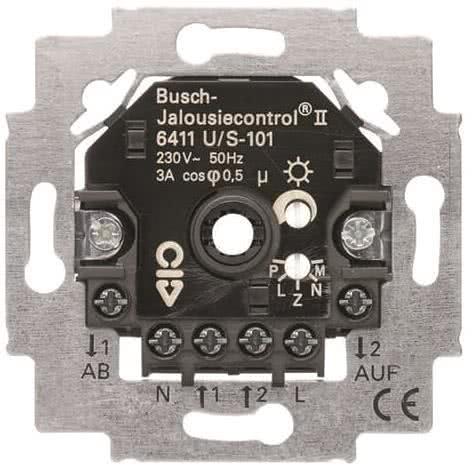

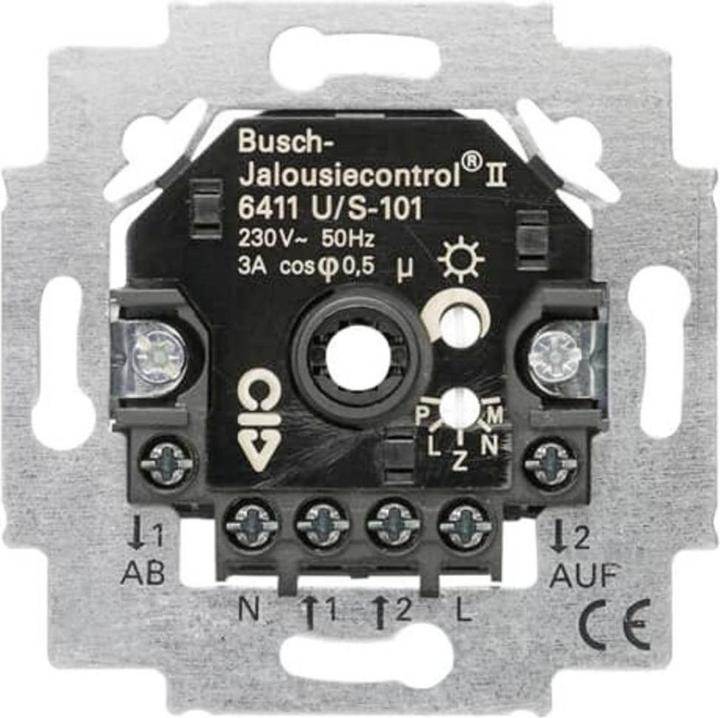

Busch-Jaeger Blinds Control Module 6411 U/S-101

Manufacturer: Busch-Jaeger
Designation: Blinds Control Module 2 Switches 3A 690VA
Type: 6411 U/S-101
Composition: Base element
With brightness sensor connection: yes
With glass break detector connection: yes
Secondary control input: yes
Adjustable sun protection value: 5000 lx
Lockout protection: yes
Mounting type: Flush-mounted
Material: other
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: other
RAL number (similar): 9005
Suitable for protection class (IP): IP20
Max. switching capacity: 690 W
Nominal voltage: 230 V
Frequency: 50 Hz
Mounting method: Screw fastening

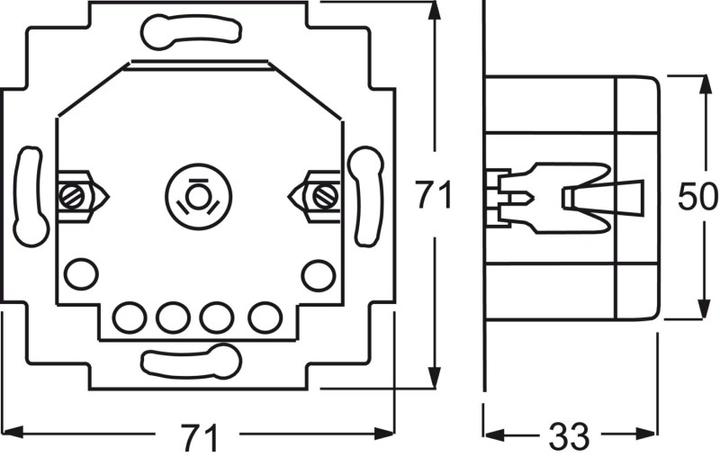

Min. depth of device box: 32.9 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

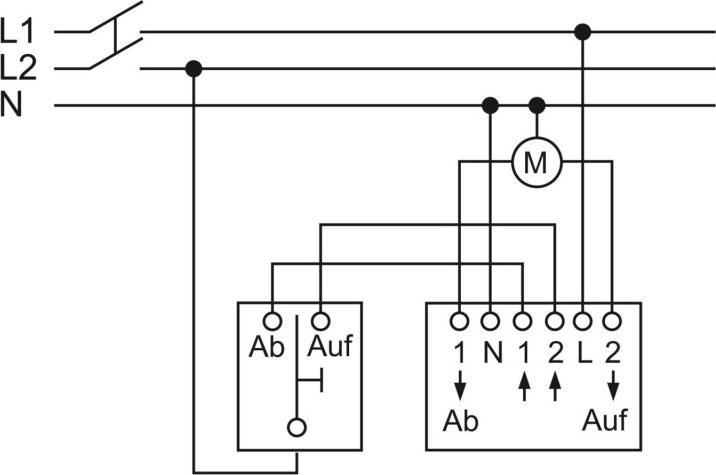

Suitable for roller shutter, blind, and awning drives with mechanical or electronic end position cutoff. Features two 230 V secondary control inputs (Up/Down) for group control. Connection options for brightness sensor and glass break detector. Includes operating mode switch for modes: Normal, Slat, Central, Position, Awning. Party function (deactivation of the local control point) in combination with Busch-Jalousiecontrol® II control element. Wind alarm and cleaning function can be realized via secondary control input. Run time: 3 min. Compatible with types 6411 U.
