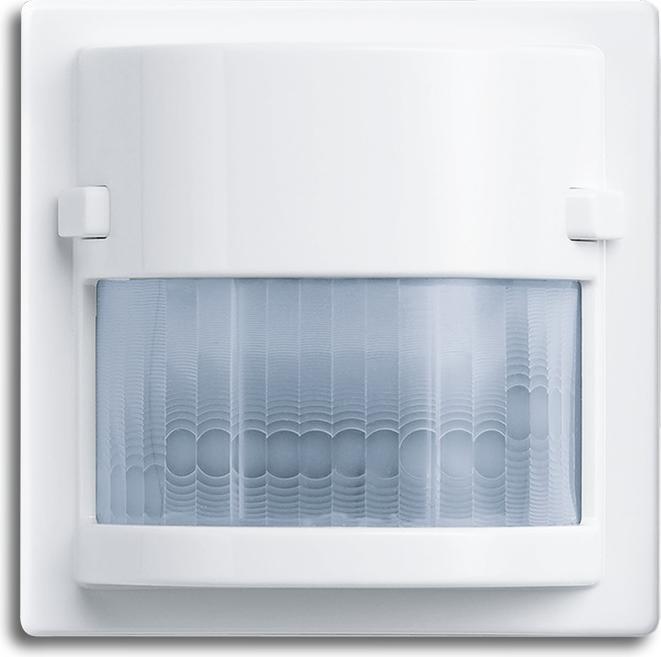

Busch-Jaeger Watchman sensor dav/sws 6122/02-84

Manufacturer: Busch-Jaeger
Designation: Watchman sensor dav/sws UP 180 Comfort
Type: 6122/02-84
Bus system KNX: Yes
Bus system Powernet: Yes
Other bus systems: Other
Design: Motion detector
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Surface protection: Untreated
Surface finish: Glossy
Color: Studio white (RAL 9016)
Operating mode switch: Yes
Staircase monitoring: Yes
Max. range to one side: 43.953 m
Max. range frontal: 10 m
Detection field diameter on floor: 6 m
Detection angle vertical: -5°
Detection angle horizontal: 0°
Number of channels: 4
Min. duty cycle: 10 s
Max. duty cycle: 17 min
Duty cycle: 17 min
Min. depth of device box: 33 mm

Busch-Jaeger Guard sensor dav/sws 6122/02-84: More details for Busch-Installationsbus KNX 6120/12-101, 6120/13 and Busch-Powernet KNX 6920/12, 6920/13 and 6920/40. Motion detector with up to 4 channels, including 10 logic channels (light scene actuator, sequence actuator, logic gate, etc.). For suitable cover frames, see the program carat, pur edelstahl, solo, Busch-axcent or future linear. EAN: 4011395135198.
