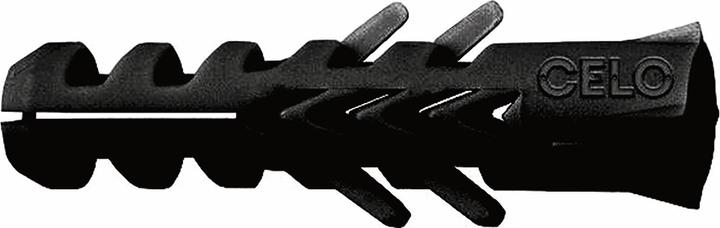

Normal dowel made of high-quality nylon. High pull-out values are achieved due to the strong expansion capability with the CELO normal dowel F. It is ideally suited for solid building materials but also achieves good load values in hollow blocks and aerated concrete. Its excellent screw guidance ensures that the screw cannot exit the dowel sideways. The pronounced wings effectively prevent rotation in the drill hole. Additionally, the stable design prevents bending during installation.

Product advantages:

• High pull-out values due to strong expansion capability (four-sided expansion in the middle area)
• Ideally suited for solid building materials, good load values also in hollow blocks and aerated concrete
• Very good screw guidance, meaning the screw cannot exit the dowel sideways
• High torsional stability due to multi-wing construction
• Stable design prevents bending during installation
• High-quality and aging-resistant nylon
• Temperature resistant from -40°C to +80°C

Note: The required screw length is calculated from the dowel length plus the thickness of the mounting object plus screw diameter. Drill in hollow and cavity blocks as well as aerated concrete without impact.

Drill diameter (mm): 8
Minimum drill hole depth (mm): 55
d (mm): 8
Color: black
Shape: FL (mm): 40
Material: Nylon
Screws (mm): 4.5 - 6
Version: in bag
Size (mm): F 8 in bag
Quantity (pcs): 100.
