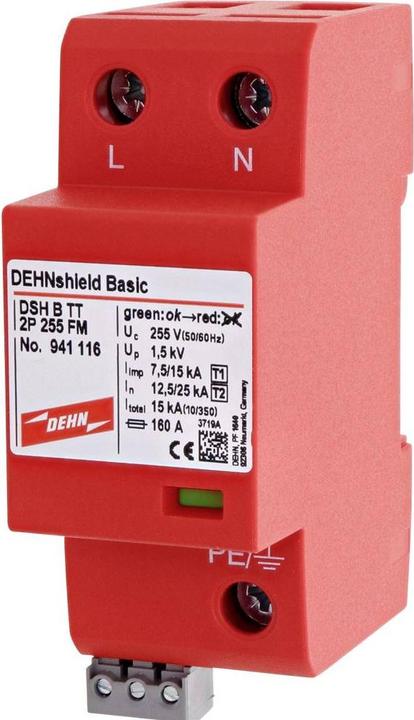

Dehn 941116 DSH B TT 2P 255 FM
Price in EUR including VAT
Delivered between Thu, 23.4. and Mon, 4.5.
free shipping
Product details
The Dehn 941116 DSH B TT 2P 255 FM is a multipole combined surge arrester classified as Type 1 + Type 2 according to the standards EN 61643-11. It utilizes a space-saving spark gap technology that allows for a compact design with only 1 TE per pole. This product is specifically designed for the protection of residential buildings and is ideally suited for retrofitting or renovations. The combined arrester also provides equipment protection and meets all relevant requirements of DIN VDE 0100-534 and DIN VDE 0100-443. It can be installed directly at the supply point of the electrical system, allowing for easy integration into existing systems.
- Combined surge protection for residential buildings
- Space-saving design with only 1 TE per pole
- Easy installation on DIN rail
- Lightning impulse current of up to 15 kA.
Surge protection type | Combination arrester |
Number of conductors | 2x |
Mounting type | Top-hat rail |
Test class | Type 1, Type 2 |
Item number | 31988944 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 941116 |
Release date | 24.10.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Surge protection type | Combination arrester |
Number of conductors | 2x |
Lightning impulse current | 15 kA |
Rated leakage surge current | 15 kA |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Test class | Type 1, Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 29,48 kg |
Climate contribution | EUR 0,74 |
