Dehn SOEHNE Combination arrestor valve ZP TT 255
Price in EUR including VAT
Delivered between Fri, 29.8. and Wed, 3.9.
Only 3 pieces in stock at supplier
Only 3 pieces in stock at supplier
free shipping
Product details

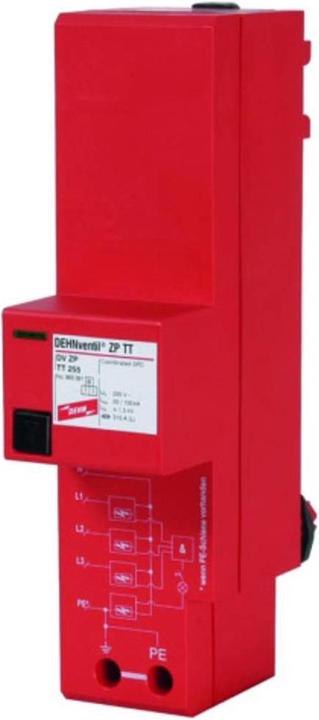

Multipole combined arrester DEHNventil ZP, type 1 + type 2 according to EN 61643-11 on spark gap basis. Can be snapped directly onto a 40mm busbar system in the meter room without tools. Highest system availability due to RADAX flow follow current limitation. Enables end device protection. For protection of low-voltage consumer installations against overvoltages, even in the event of direct lightning strikes. Can be used according to the lightning protection zone concept at interfaces 0A-2.
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Test class | Type 1 |
Item number | 13050835 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 900391 |
Release date | 7.4.2020 |
External links |
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Lightning impulse current | 100 kA |
Rated leakage surge current | 0.32 kA |
Nominal voltage | 255 V |
Protection level | 1.50 V |
Test class | Type 1 |
Protection type (IP code) | IP30 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

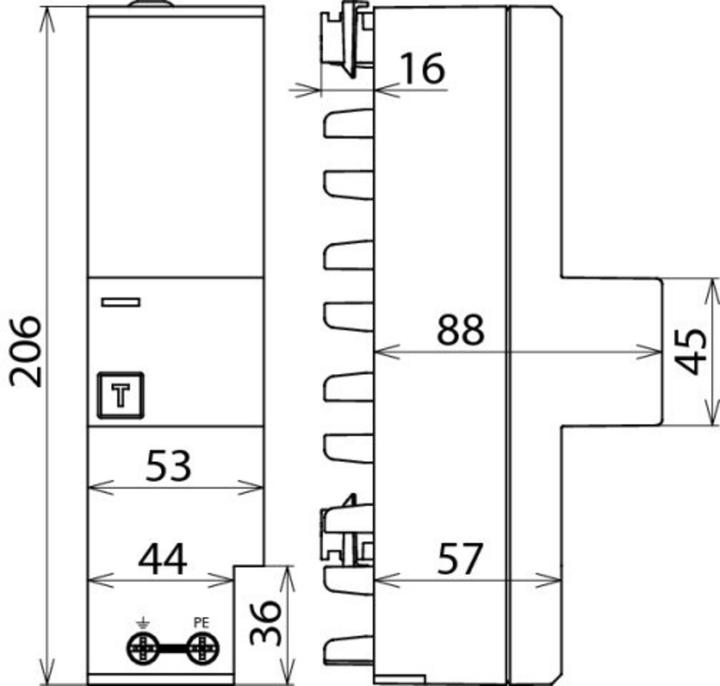

Length | 0.09 m |
Width | 0.05 m |
Height | 0.21 m |
Weight | 1080 g |
Product Safety |
