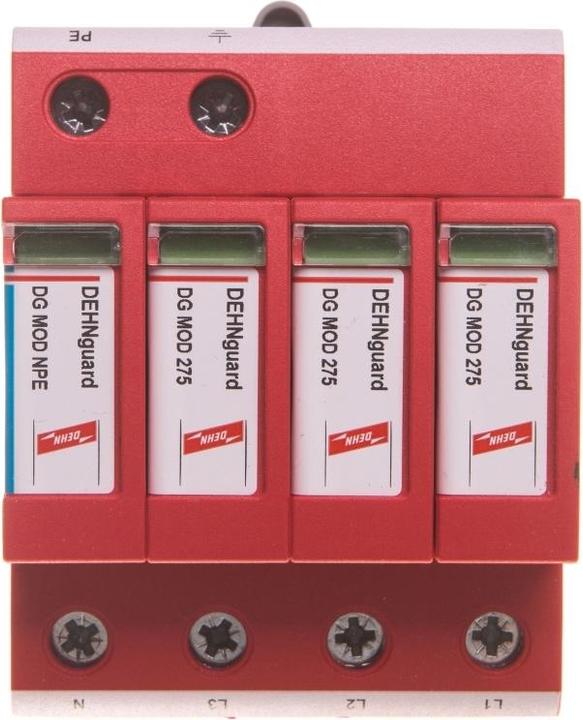

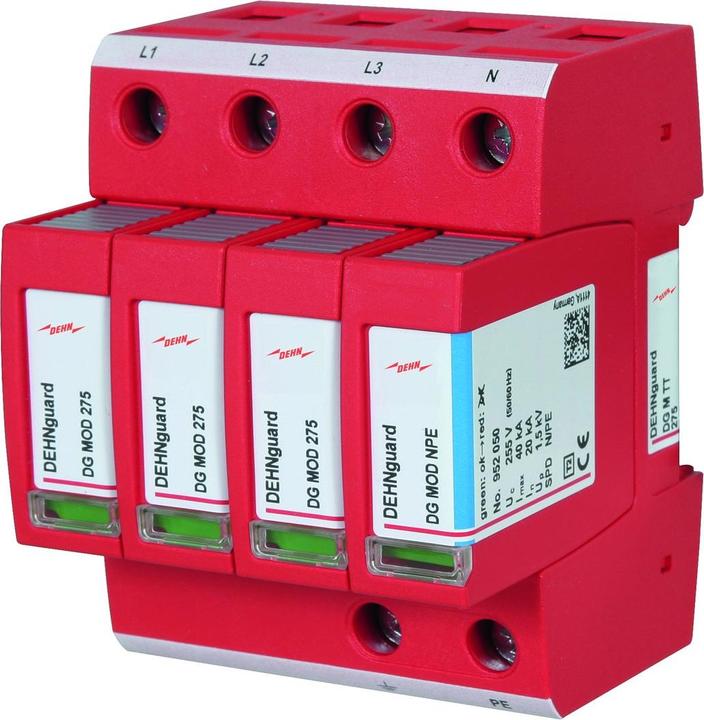

Multipole surge arrester DEHNguard M, type 2 according to EN 61643-11, consisting of a base part and plug-in protection modules. High device safety due to arrester monitoring with thermo-dynamic control. Designed for the protection of low-voltage consumer equipment against overvoltages. Suitable for use in the lightning protection zone concept at interfaces 0B-1 and higher.
Surge protection type | Surge arrester |
Number of conductors | 4 x |
Test class | Type 2 |
Mounting type | Top-hat rail |
Item number | 13055977 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 952310 |
Release date | 8.4.2020 |
Sales rank in Category Surge protection | 7 of 2508 |
Surge protection type | Surge arrester |
Number of conductors | 4 x |
Lightning impulse current | 40 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 0.10 m |
Width | 0.07 m |
Height | 0.09 m |
Weight | 400 g |
Length | 10 cm |
Width | 7.50 cm |
Height | 7.50 cm |
Weight | 420 g |
Product Safety |
