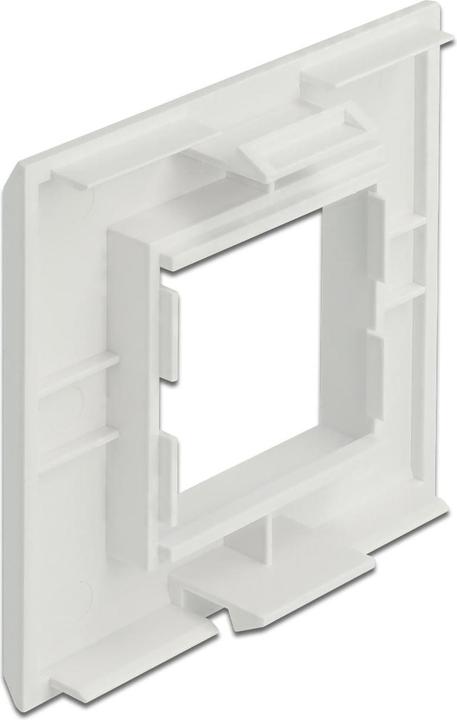

This module carrier from Delock is designed to accommodate one module measuring 45 x 45 mm or two modules measuring 22.5 x 45 mm.

Individual adaptation to specific needs
Thanks to the wide variety of different modules, the module carrier can be customized and adapted to meet individual requirements.

Suitable for device installation channels with an opening of approximately 76.5 mm
The Delock module carrier can be easily mounted onto a channel with an opening of about 76.5 mm. No tools are required for installation. The module carrier is simply inserted into the opening and then clicks into place.

Easy 45 connection
Easy 45 is a versatile, modular system that allows you to assemble components such as sockets, HDMI, or USB connections according to your needs. The Easy 45 modules are standardized and can be installed in various module carriers or channel systems. Easy 45 serves as the interface between electrical, network, and system installations and many peripheral devices such as TVs, monitors, printers, laptops, and more.

Specifications

• Robust plastic holder
• Suitable for device installation channels with an opening of approximately 76.5 mm
• Module cutout: 45 mm x 45 mm
• Material: ABS
• Dimensions (LxWxH): approximately 85 x 80 x 20 mm
• Color: white

System requirements

• Device installation channel with an opening of approximately 76.5 mm

Package contents

• Easy 45 module carrier.
