DeWalt DCS365N
Only 1 piece in stock at supplier
Product details
Dewalt DCS365N-XJ Cordless Mitre and Compound Saw 184 mm 18 Volt without Battery or Charger
Description
The fan-cooled 65 mm high-performance motor with replaceable carbon brushes ensures sufficient power reserves even under very heavy use. Mitre angles up to 48° right and 48° left, as well as a bevel angle from -2 to 48° left, are infinitely and precisely adjustable. The double, dust-protected trombone extension guarantees maximum precision at all cutting angles, even at maximum cutting capacity. The large horizontal guide allows for easy handling of large workpieces. Ideal for assembly due to its robust yet lightweight aluminum die-cast construction. Precisely set and easy-to-use locking stops for all common mitre and bevel angles. Patented XPS cut line indicator for accurate work and perfect illumination of the cutting area.
Technical Data
Output power: 590 Watts
Voltage: 18 Volts
Blade speed: 3750 rpm
Blade diameter: 184 mm
Blade bore: 16 mm

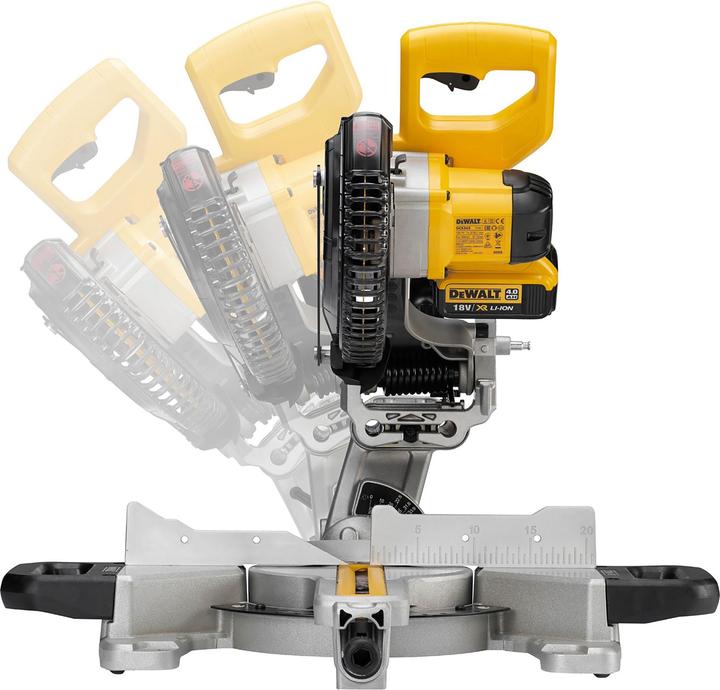

Bevel adjustment: 48°
Mitre settings (right/left): 48/48°
Max. cutting depth at 90°/90°: 250 x 50 mm
Max. cutting depth at 45°/90°: 176 x 50 mm
Max. cutting length at 90°/45°: 250 x 35 mm
Max. cutting area at 45°/45°: 176 x 35 mm
Weight: 11.5 kg
Depth: 590 mm
Length: 490 mm
Height: 590 mm
Vibration uncertainty factor K1: 1.5 m/s²
Sound power: 93 dB(A)
Sound power uncertainty factor K2: 2.0 dB(A)
Sound pressure: 88 dB(A)
Sound power uncertainty factor K3: 2.0 dB(A)
Battery technology: XR Li-Ion
Scope of Delivery
In the box
Without battery or charger
Saw blade ...
Nominal diameter | 184 mm |
Max. depth of cut at 90° | 250 mm |
Battery voltage | 18 V |
Power | 590 W |
Item number | 18010162 |
Manufacturer | DeWalt |
Category | Chop saw + mitre saw |
Manufacturer no. | DCS365N |
Release date | 7.6.2021 |
Colour | Green |
Exact colour description | Green |
Suitable for | Metal, Wood |
Max. tilt adjustment | 48° |
Mounting hole | 16 mm |
Nominal diameter | 184 mm |
Max. depth of cut at 90° | 250 mm |
Max. Depth of cut at 45 | 176 mm |
Power supply | Rechargeable battery operated |
Battery type | Li-ion |
Capacity | 4 Ah |
Battery voltage | 18 V |
Battery equipment | No batteries supplied |
Charger equipment | No charger supplied |
Cable length | 0.18 m |
Power | 590 W |
Max. Idle speed | 3750 rpm |
Max. noise level | 88 dB |
Sound power level (LWA) | 93 dB |
Sound pressure level (LpA) | 88 dB |
Material group | Metal, Wood |
Material | Aluminium, Metal, Wood |
Country of origin | Germany, Italy |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 490 mm |
Width | 590 mm |
Height | 590 mm |
Weight | 11.50 kg |
Length | 64 cm |
Width | 58 cm |
Height | 42 cm |
Weight | 15 kg |
Product Safety |
