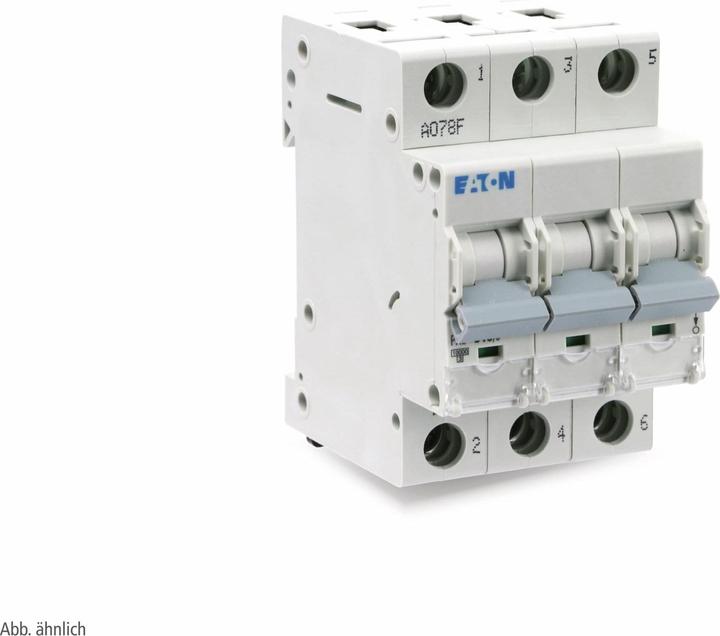

Eaton Circuit breaker type C 32A 3-pole

Price in EUR including VAT
Ratings
Delivered between Tue, 1.7. and Wed, 2.7.
More than 10 items in stock at supplier
free shipping

Product details

Range: xPole
Series: PXL, S200
Number of poles: 3
Rated current: 32 A
Tripping characteristic: Type C
AC rated voltage: 400 V
DC rated voltage: 48 V
Breaking capacity: 10 kA
Length: 52.5 mm
Width: 80 mm
Depth: 60 mm

IEC / EN 60898. PXL series, C-characteristic, 3-pole. Miniature circuit-breaker with high selectivity for back-up fuse protection due to low let-through energies. Displacement compatible with double convenience terminal. Lift/maul above and below. Free choice of top and bottom rail arrangement. Finger/back-of-hand safe. Quick mounting with 3 latching positions for top-hat rail IEC/EN 60715.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
90 mm
Width
60 mm
mounting style
Top-hat rail
number of poles
3
Item number
9717432

General information

Manufacturer
Eaton
Category
Residual-current device
Manufacturer no.
PXL-C32/3
Release date
24.9.2018
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Top-hat rail
number of poles
3
Tripping characteristic
C
Rated current
32 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
90 mm
Width
60 mm
Height
80 mm

Package dimensions

Length
9 cm
Width
8 cm
Height
6 cm
Weight
350 g
