Eaton DIULM12/21(24VDC)

Ratings
BrandMore from Eaton
Currently out of stock
Free shipping starting at 30,–

Product details

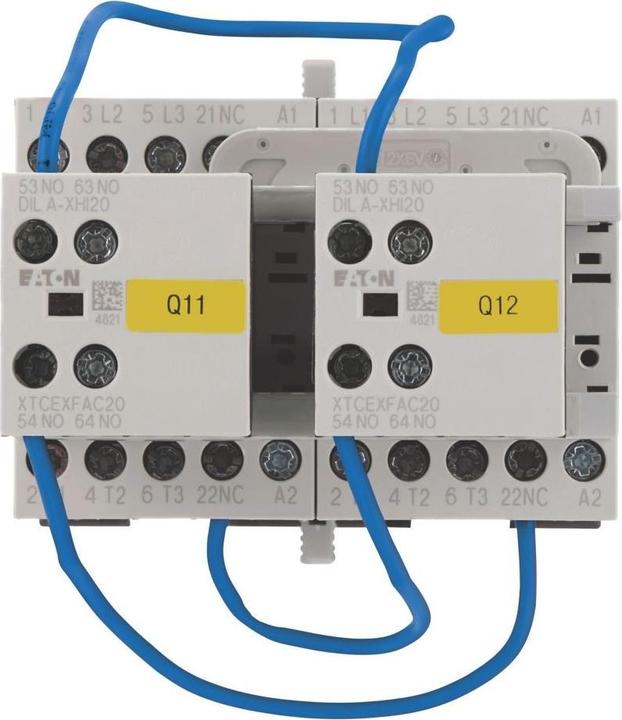

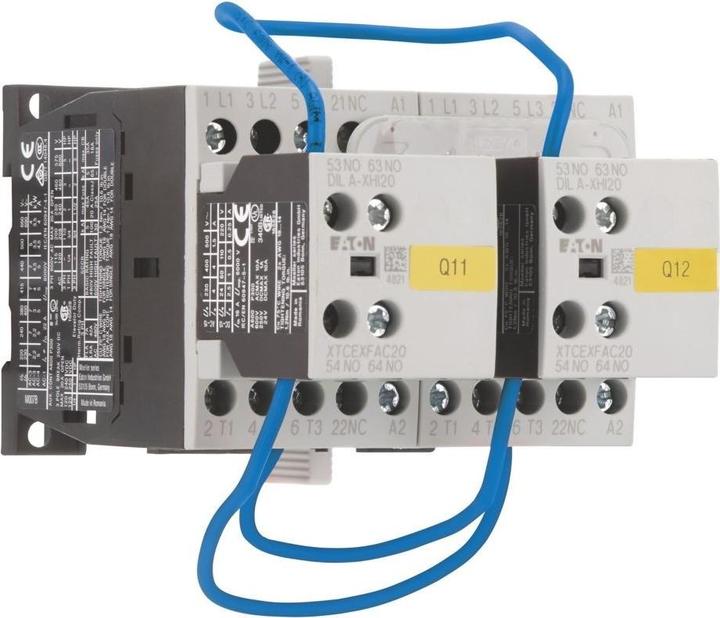

Eaton reversing contactor DIULM12/21 (24VDC)

Manufacturer: Eaton
Designation: Reversing contactor
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Rated operating current Ie at AC-1, 400 V: 12 A
Rated operating current Ie at AC-3, 400 V: 12 A
Rated operating power at AC-3, 400 V: 5.5 kW
Rated operating power NEMA: 7.4 kW
Number of NO contacts as main contacts: 6
Version of electrical connection for auxiliary and control circuit: Screw connection
Type of connection main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other
Rail mounting possible: No

Further details:
Reversing contactor combination, application: Contactor combinations for motor starting with two directions of rotation, accessories: Reversing contactor combinations DIUL, utilization category: AC-3: Squirrel-cage motors: Starting, switching off during running, AC-4: Squirrel-cage motors: Starting, counter-current braking, reversing, jogging.

Rated operational current AC-3 380 V 400 V: Ie = 12 A, max. rated operational power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P = 3.5 kW, 380 V 400 V: P = 5.5 kW, 660 V 690 V: P = 6.5 kW.

Actuating voltage: 24 V DC
Current type AC/DC: Direct current actuation
Note: Also suitable for motors of efficiency class IE3
EAN: 4015081067916.
