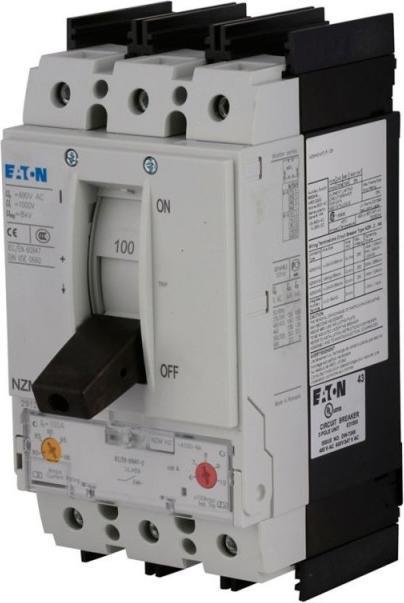

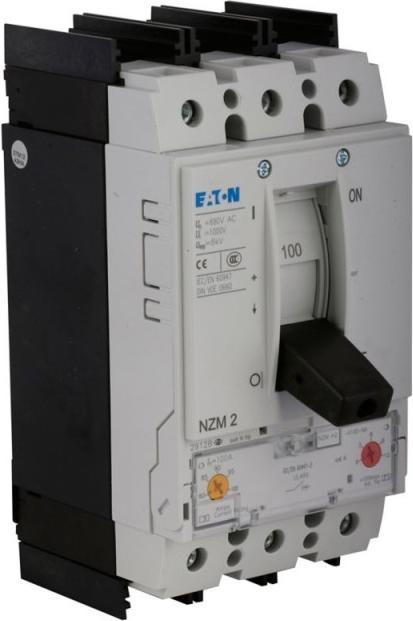

Eaton EATO circuit breaker

Ratings
BrandMore from Eaton
Currently out of stock
Free shipping starting at 30,–

Product details

Eaton circuit-breaker NZMH2-M160
Manufacturer: Eaton
Designation: Circuit-breaker 3p, 160A
Type: NZMH2-M160
Overload release current setting: 125-160 A
Instantaneous short-circuit release setting range: 1280-2240 A
With thermal protection: Yes
Phase loss sensitive: No
Tripping technology: Thermomagnetic
Rated operational voltage: 690 V
Rated continuous current Iu: 160 A
Rated operational power at AC-3, 230 V: 45 kW
Rated operational power at AC-3, 400 V: 75 kW
Connection type main circuit: Screw connection
Design of the operating element: Fixed mounting technology
With integrated auxiliary contact: No
With integrated undervoltage release: No
Number of poles: 3
Rated short-circuit breaking current Icu at 400 V, AC: 130 kA
Degree of protection (IP): IP20
Height: 184 mm
Width: 105 mm
Depth: 149 mm

Eaton circuit-breakers NZMH2-M160: further details
The NZM-M series covers all applications with only four compact sizes and is suitable for the IEC market. Mounting is always flexible thanks to modular function groups. With thermomagnetic trip for motor protection.
Notes: Tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2, circuit-breakers meet all requirements of utilization category AC-3.
EAN: 4015082813086.

Key specifications

Circuit breaker type
Circuit breaker
Mounting type
Built-in installation
number of poles
3
Length
149 mm
Width
105 mm

General information

Item number
33820565
Manufacturer
Eaton
Category
Residual-current device
Manufacturer No.
281308
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Built-in installation
Mounting type
Screw fastening
number of poles
3
voltage type
AC/DC
Protection type (IP code)
IP20

Origin

Country of origin
Romania

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
149 mm
Width
105 mm
Height
184 mm
