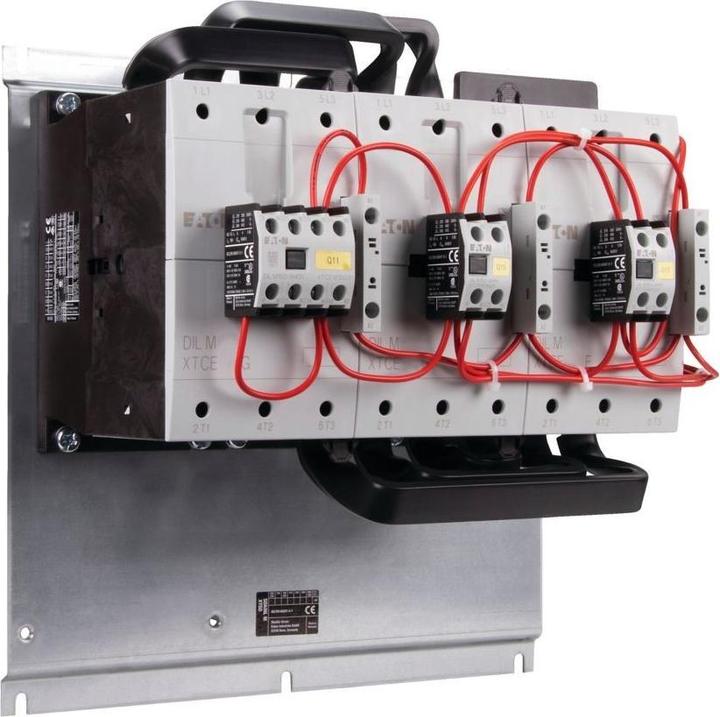

Eaton contactor combination SDAINLM200 #101010

Manufacturer: Eaton
Designation: Contactor combination (230V 50Hz, 240V 60Hz)
Type: SDAINLM200 #101010
Function: Star-delta contactor
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 240 V
Rated control supply voltage Us at DC: 0 V
Voltage type for actuation: AC
Rated operating current Ie at AC-1, 400 V: 200 A
Rated operating current Ie at AC-3, 400 V: 200 A
Rated operating power at AC-3, 400 V: 110 kW
Rated operating power NEMA: 0 kW
Number of NO contacts as main contacts: 9
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Protection class (IP): IP00
Protection class (NEMA): Other
Rail mounting possible: No

More details:
Star-delta contactor combination
Application: Contactor combinations for motor start in star-delta
Switching frequency: Max. 30 starts/hour
Accessories: Star-delta combinations SDAINL
Utilisation category: AC-3: Squirrel cage motors: Starting, switching off while running
Rated operating current AC-3 380 V 400 V: Ie = 200 A
Max. rated operating power three-phase motors 50 - 60 Hz AC-3
220 V 230 V: P = 55 kW
380 V 400 V: P = 110 kW
500 V: P = 132 kW
660 V 690 V: P = 160 kW
Max. switching time: 20 s
Actuating voltage: 230 V 50 Hz, 240 V 60 Hz
Current type AC/DC: AC actuation

Individual components of combination:
Mains contactor Q11: DILM115, + DILM150-XHI31
Delta contactor Q15: DILM115, + DILM150-XHI11 type
Star contactor Q13: DILM80, + DILM150-XHI11 type
Timing relay K1: ETR4-51 type
Note: Also suitable for motors of efficiency class IE3
EAN: 4015081009091.
