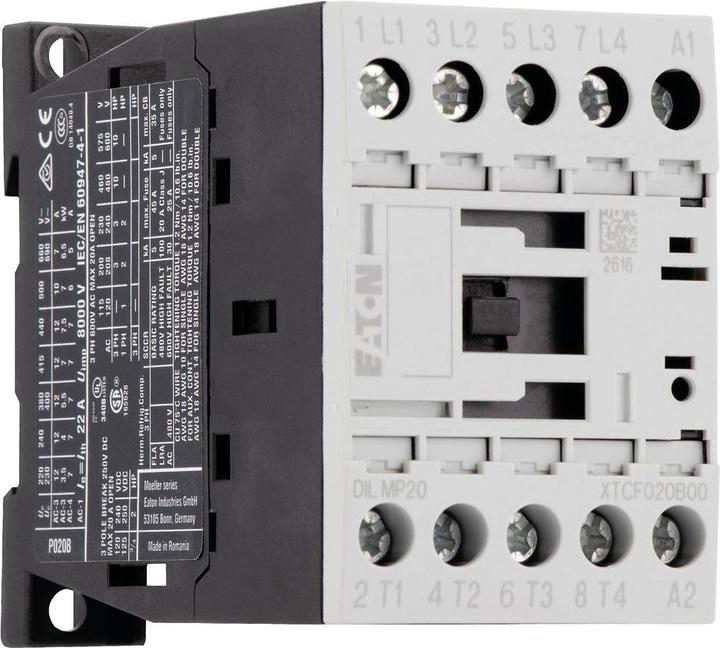

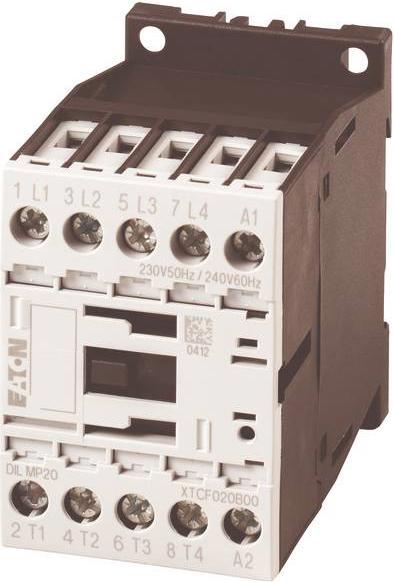

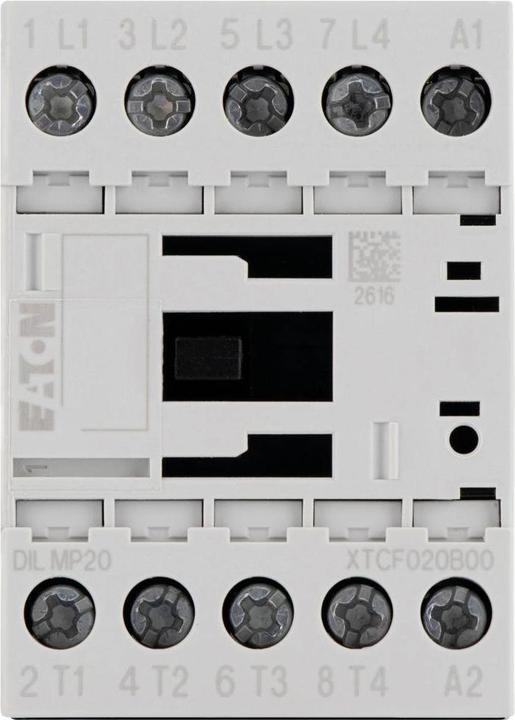

Eaton contactor DILMP20 (230V 50/60Hz)

Manufacturer: Eaton
Designation: Contactor 4p, 20A/AC
Type: DILMP20 (230V 50/60Hz)
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Rated control supply voltage Us at DC: 0 V
Voltage type for operation: AC
Rated operational current Ie at AC-1, 400 V: 22 A
Rated operational current Ie at AC-3, 400 V: 12 A
Rated operational power at AC-3, 400 V: 5.5 kW
Rated operational current Ie at AC-4, 400 V: 10 A
Rated operational power at AC-4, 400 V: 4.5 kW
Rated operational power NEMA: 0 kW
Suitable for series mounting: No
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 4

Further details:
Power contactor for 4-pole loads, power contactors up to 200 A, 4-pole.
Utilisation category: AC-1: Non-inductive or low inductive load, resistance furnaces; AC-3: Squirrel cage motors: starting, switching off during running.
Connection method: Screw terminals.
Poles: 4-pole, 380 V 400 V: Ie = 12 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie = 22 A, enclosed: Ith = 18 A, conventional thermal current 1-pole open: Ith = 60 A, encapsulated: Ith = 54 A.
220 V 230 V: P = 3.5 kW, 380 V 400 V: P = 5.5 kW, 660 V 690 V: P = 6.5 kW.
Notes: Switching elements according to EN 50012.
Type of current AC/DC: AC actuation.
EAN: 4015082769789.
