Eaton Electric GmbH Main switch P3-63/I4/SVB/HI11
Only 2 pieces in stock at supplier
Product details

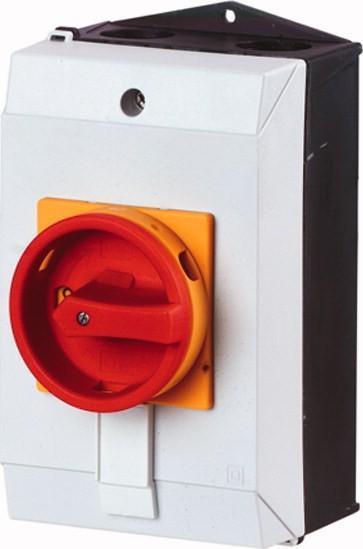

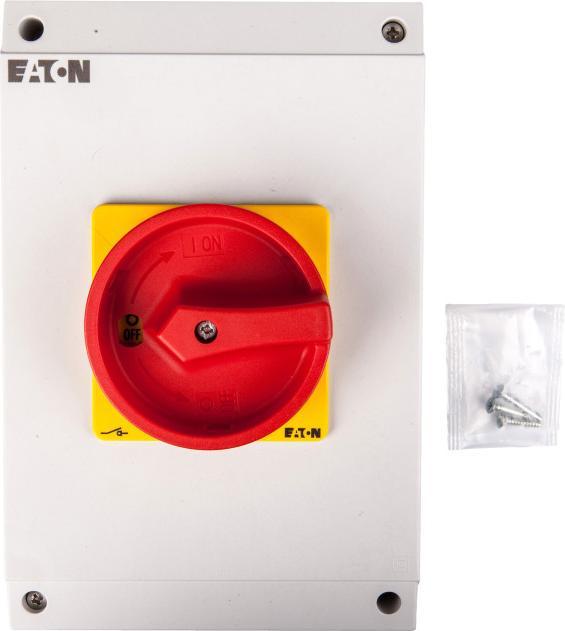

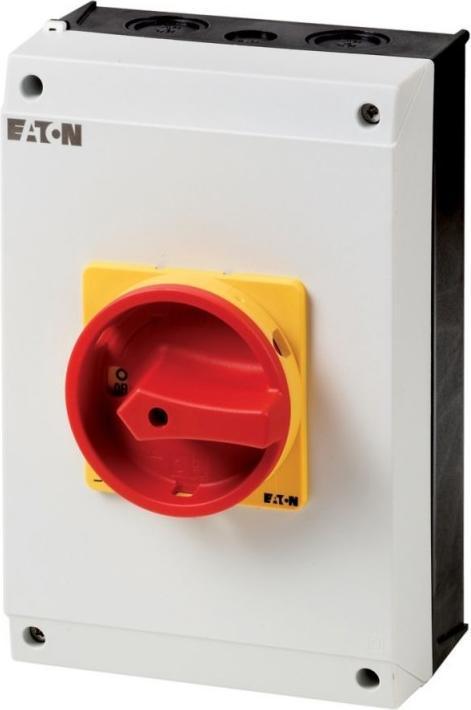

The Eaton main switch P3-63/I4/SVB/HI11 is a versatile and reliable device designed for system power supply. With a maximum rated operating voltage of 690 V and a rated continuous current of 63 A, this main switch is suitable for various applications in industrial and commercial environments. It serves multiple functions, including acting as a maintenance and repair switch, as well as a safety switch and emergency stop device. The robust construction and IP65 protection rating ensure high resistance to dust and water, making it ideal for indoor use. The switch is equipped with a door coupling rotary drive and can be locked for added safety. With a switching capacity of up to 30 kW at 400 V, this main switch is a reliable choice for demanding applications.
- Maximum rated operating voltage of 690 V
- IP65 protection rating for high durability
- Versatile functions: main switch, maintenance/repair switch, safety switch
- Switching capacity of up to 30 kW at 400 V
- Door coupling rotary drive with locking option.
Nominal current | 63 A |
Nominal voltage | 690 V |
Protection type (IP code) | IP65 |
Item number | 21426619 |
Manufacturer | Eaton |
Category | Mobile power distributors |
Manufacturer No. | 207348 |
Release date | 7.7.2022 |
External links |
Colour | Red, Yellow |
Exact colour description | Red, Yellow |
Nominal current | 63 A |
Nominal voltage | 690 V |
Area of use | Inside |
Number of poles | 3x |
Contact Configuration | 1 NO contact: 1 NC contact: 1 |
Actuator Type | Rotary switch |
Power | 30000 W |
Input voltage | 690 V |
Protection type (IP code) | IP65 |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 15,72 kg |
Climate contribution | EUR 0,39 |
Items per sales unit | 1 pcs. |
Scope of delivery | Main switch I4, SVB |
Width | 160 mm |
