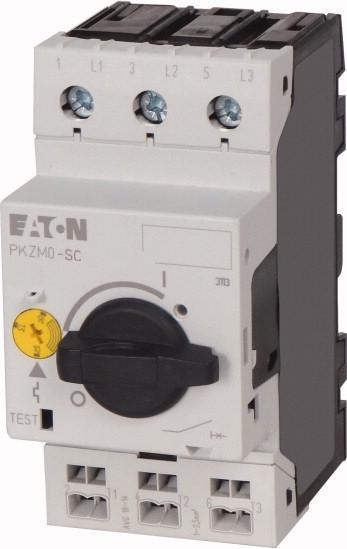

Eaton PKZM0-10-SC Circuit breaker Motor protection switch 3

Ratings
BrandMore from Eaton
Currently out of stock
Free shipping starting at 30,–

Product details

The PKZM0-10-SC circuit breaker from Eaton is a highly advanced motor protection switch designed according to the IEC/EN60947 standards. This 3-pole switch offers reliable overload and short-circuit protection features, distinguished by its adjustable trip settings. With a rated operating voltage of up to 690 V and a maximum rated current of 10 A, this switch is ideal for use in various industrial applications. The phase failure sensitivity function provides additional safety, while the mounting options include both screw and snap-on installation, facilitating easy setup. The PKZM0-10-SC is also equipped with screw and spring clamp terminals, allowing for secure and straightforward wiring. With an IP20 protection rating, the switch is suitable for use in dry indoor environments and meets the requirements of VDE 0106 T. 100 regarding finger safety. Accessories such as auxiliary switches and voltage release devices are also available to enhance functionality.

  • Adjustable overload and short-circuit protection features
  • Phase failure sensitivity for increased safety
  • Versatile mounting options: screw and snap-on installation
  • Screw and spring clamp terminals for easy wiring
  • Accessories available to expand functionality.

Key specifications

Circuit breaker type
Motor protection switch
number of poles
3
Length
76 mm
Width
45 mm

General information

Item number
32917018
Manufacturer
Eaton
Category
Residual-current device
Manufacturer No.
229837
Release date
15.4.2023

Circuit Breaker Features

Circuit breaker type
Motor protection switch
Mounting type
Screw fastening
number of poles
3
Tripping characteristic
Sluggish ---
Rated current
10 A
Rated voltage
690 V
voltage type
AC/DC
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
76 mm
Width
45 mm
Height
93 mm
