Fischer Germany Metal Frame Anchor F 10 M 182 E

Manufacturer: Fischer Germany
Description: Metal Frame Anchor
Type: F 10 M 182 E
Design: Expansion Anchor
Drill Hole Diameter: 10 mm
With Screw: No
Suitable for Hexagon Wood Screw: No
Suitable for Attachment with Cable Tie: No
Drill Hole Depth: 200 mm
Length: 182 mm
Material: Steel
Material Quality: Other
With Edge: No
Suitable for Aerated Concrete: Yes

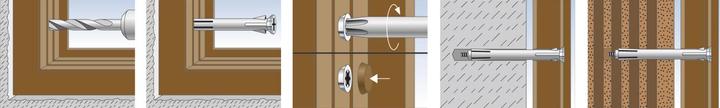

The Fischer Metal Frame Anchor F 10 M is a specialized anchor designed for stress-free spacing installation of window and door frames. It consists of a metal sleeve and a countersunk screw made of galvanized steel. The F 10 M is quickly installed using the through-mounting method. When tightening the screw, the cone is pulled into the anchor sleeve, expands, and secures itself against the wall of the drill hole. This allows the window frame to be mounted stress-free in solid and hollow building materials. In addition to securing window and door frames, the Fischer Metal Frame Anchor F 10 M is also suitable for securing wooden beams.
