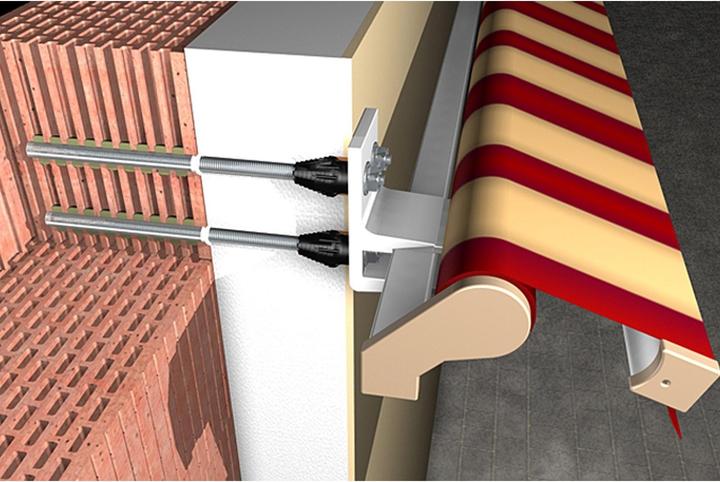

The Fischer distance mounting system TherMax is a solution for fastening to external walls without thermal bridges in external thermal insulation composite systems (ETICS). The system consists of a special anchor rod made of galvanized steel with a fiberglass-reinforced cone, threaded pins, and anchor sleeves for securing in hollow blocks. In combination with Fischer high-performance mortars FIS EM Plus, FIS V, FIS SB, and FIS Green, the system is approved for numerous building materials. The anchor rod with the fiberglass-reinforced cone self-drills through the plaster into the insulation material. The anchor rod is anchored in the anchor sleeve with an injection mortar in the building material. The cone at the head of the anchor rod interrupts the thermal bridge and accommodates the stainless steel threaded pin for external fastening. The TherMax secures heavy loads such as awnings, air conditioning units, and satellite systems in concrete, aerated concrete, and masonry made of hollow and solid bricks.
anchor type | Screws + dowels set |
borehole diameter | 12 mm |
Dowel length | 110 mm |
Items per sales unit | 20 pcs. |
bolt diameter | 12 mm |
Item number | 10913786 |
Manufacturer | Fischer |
Category | Wall plugs |
Manufacturer no. | 51291 |
Release date | 3.4.2019 |
Sales rank in Category Wall plugs | 5 of 5135 |
External links |
Colour | Black, Grey |
Exact colour description | Black/Grey |
Material group | Metal, Plastic |
Material | Galvanized, Stainless steel |
anchor type | Screws + dowels set |
borehole diameter | 12 mm |
Dowel length | 110 mm |
bolt diameter | 12 mm |
borehole depth | 110 mm |
building material surface | Concrete, Perforated lime sand brick, Solid brick, Vertically perforated brick |
Material application | Concrete, Lime sandstone, Tile |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 20 pcs. |
Length | 40 cm |
Width | 20 cm |
Height | 20 cm |
Weight | 2 kg |
