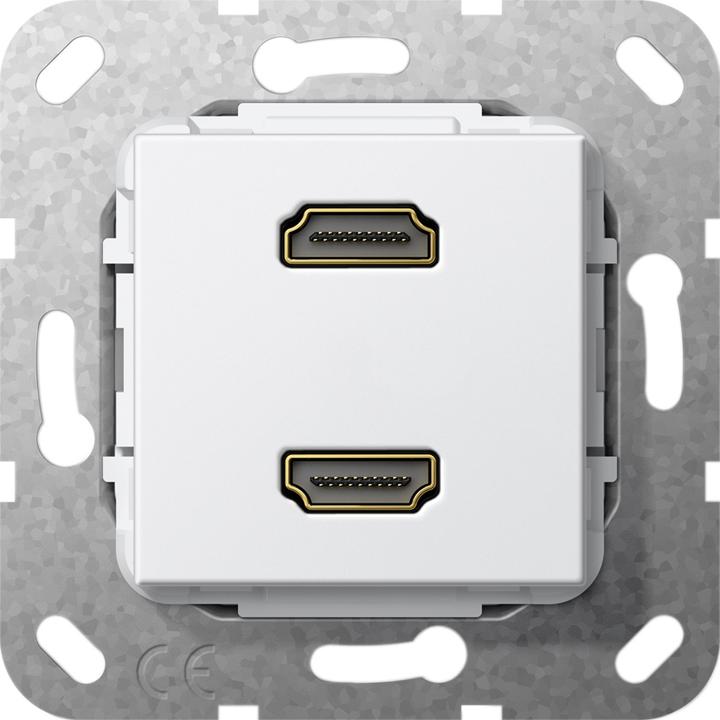

Gira HDMI 2-gang gender changer 567103

Manufacturer: Gira
Designation: HDMI 2-gang gender changer
Type: 567103
Composition: Basic element with central cover plate
Use: HDMI
Support ring: Yes
With dust protection: No
With hinged cover: No
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: No
Antibacterial treatment: No
Surface protection: Other
Finish: Glossy
Color: White
RAL number (similar): 9010
Transparent: No
Mounting type: Mounting with screw
With strain relief: No
Luster terminal: No
With lighting: No
Suitable for protection class (IP): IP20

Gira HDMI 2-gang gender changer 567103: more details
Insert HDMI 2.0a + HDR 2-gang coupling, pure white glossy.

Notes: For screw mounting only. Attention: Note installation space for connectors and bending radii. Note for inserts with couplings: Not suitable for trunking installation and standard device box. Connection with angle plugs recommended. When using these plugs, there is a power limit of 15 watts for connected devices.

Installation recommendation: Kaiser electronic sockets
Flush mounting: Kaiser order no.: 1068-02
Cavity wall mounting: Kaiser order no.: 9062-94
Concrete installation: Kaiser order no.: 1268-40
EAN: 4010337461647.
