H-Tronic Temperature switch module TS
Heating actuatorOnly 2 pieces in stock at third-party supplier
Product details

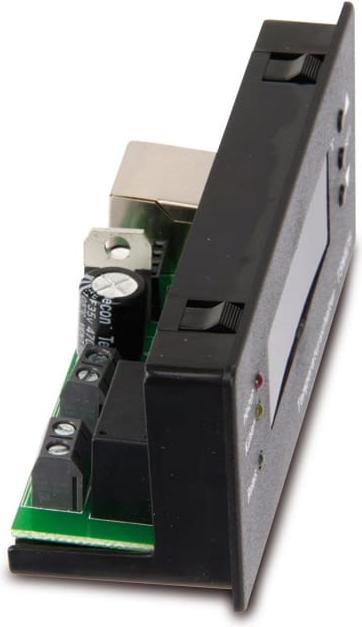

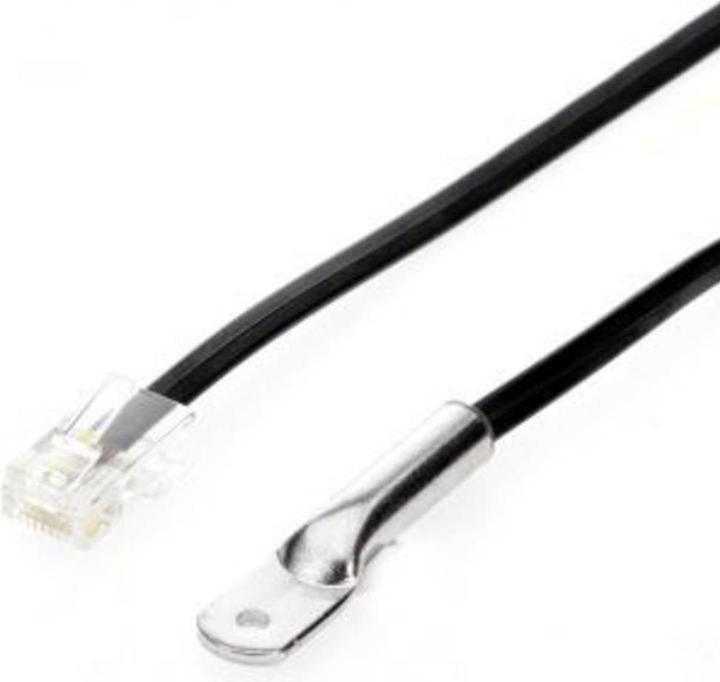

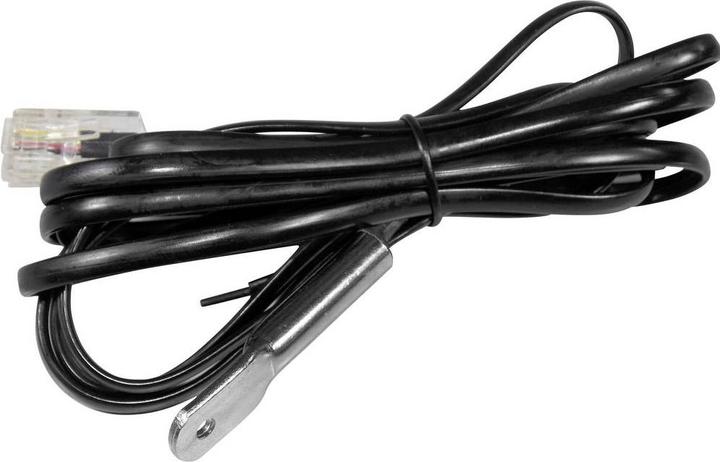

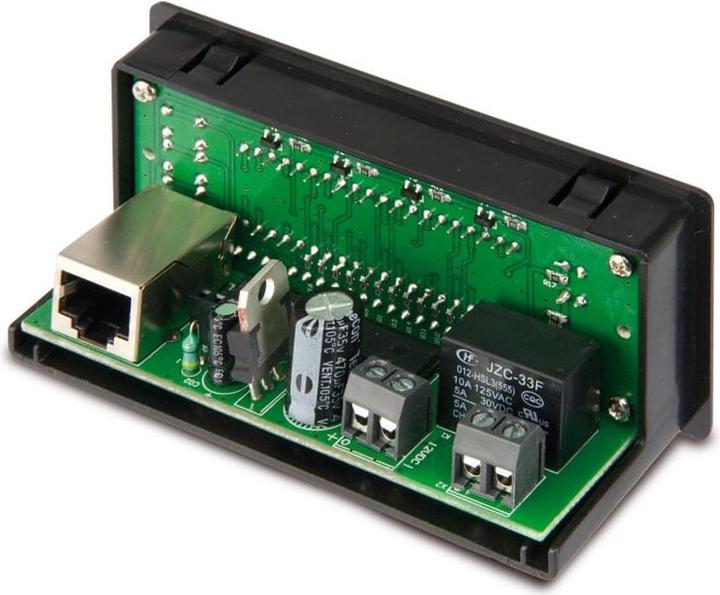

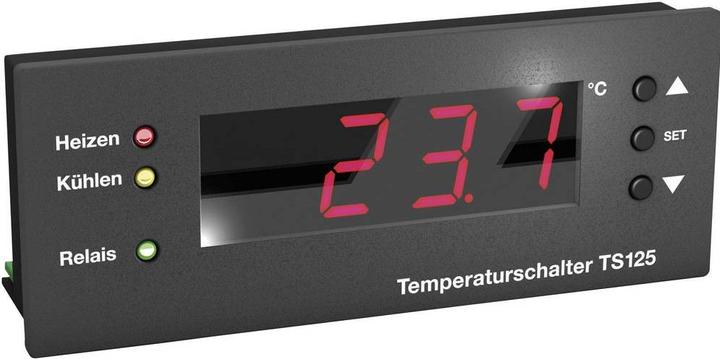

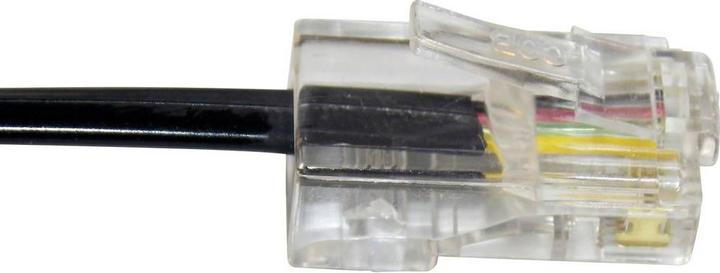

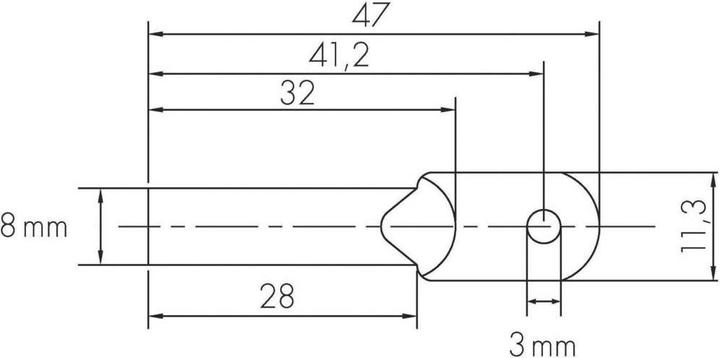

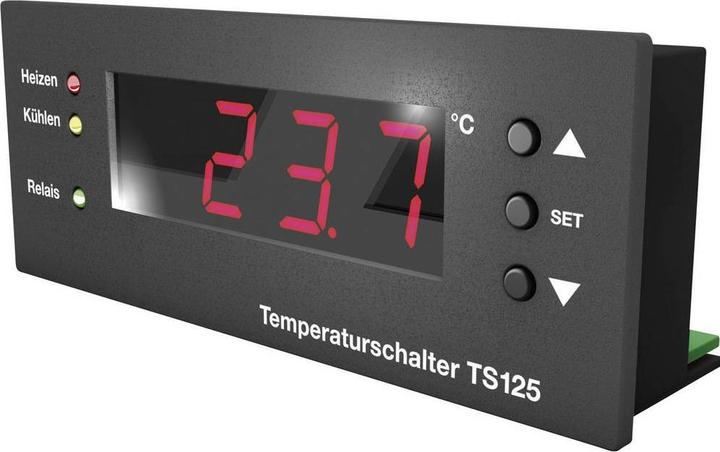

The universal temperature controller (thermometer) is ideal for all applications where temperature regulation is required in heating or cooling operations. Its external plug-in temperature sensor measures ranges from -55 to +125 °C. The switching temperature can be set in 1 °C increments. A 12.7 mm large 7-segment display shows the on and off temperatures as well as the current temperature. A red LED indicates "Heating," a yellow one indicates "Cooling," and another lights up when the relay is activated. The electronic thermostat is not only clear and easy to use but also safe in operation - sensor short circuits and sensor interruptions are immediately detected. The installation module can be used independently but also serves as a replacement for defective mechanical thermostats or digital thermometers. The connection cable can optionally be extended up to 50 m.
Actuator type | Heating actuator |
Items per sales unit | 1 x |
Item number | 8796004 |
Manufacturer | H-Tronic |
Category | Actuator |
Manufacturer no. | TSM 125 |
Release date | 26.5.2018 |
External links |
Actuator type | Heating actuator |
rated current | 5 A |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 0.04 m |
Width | 0.10 m |
Height | 0.05 m |
