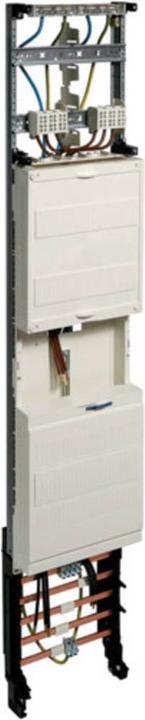

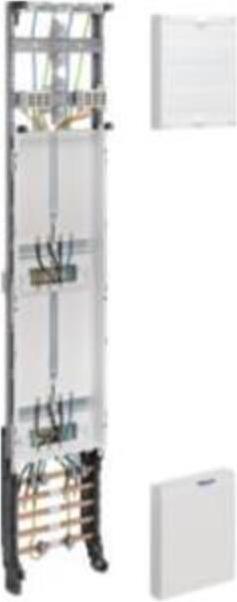

The complete field 1-field H 2ZP from Hager is a system power supply specifically designed for the installation of meter locations according to the DIN VDE 0603 standards. With a height of 1350 mm and a width of 250 mm, this product offers an efficient solution for the installation of eHZ meter locations. It is already equipped and wired in accordance with the VNB TAB regulations, allowing for quick assembly in the cabinet through a practical snap-in system. The installation-side connection area is generously designed and provides space for main line branch terminals that are finger-safe according to current safety standards. Additionally, the complete field features an integrated additional space for communication and control devices, enhancing the flexibility and functionality of the installation. The use of high-quality materials and precise workmanship ensures reliable performance and durability.
Nominal current | 63 A |
Item number | 13361438 |
Manufacturer | Hager |
Category | Mobile power distributors |
Manufacturer no. | ZH53X3 |
Release date | 22.6.2020 |
Colour | White |
Exact colour description | White |
Nominal current | 63 A |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | 1-field, 1350mm, 2 ZP, Complete field, EON centre. Complete panel / universal Z installation kit for eHZ for setting up metering points in accordance with DIN VDE 0603, Equipped and wired in accordance with VNB TAB regulations for eHZ metering points in accordance with DIN VDE 0603-1 and DIN VDE 0603-2-1., MV, N-axis, NRW, Quick assembly in the cabinet thanks to the snap-in system, SH, universZ |
Width | 250 mm |
Length | 250 mm |
Height | 1350 mm |
Length | 137 cm |
Width | 26 cm |
Height | 14 cm |
Weight | 31.50 kg |
