Hager Fault arc protective device AFDD LSSwitch PN 0kA B0A 2M

Price in EUR including VAT, free shipping
Ratings
BrandMore from Hager
Delivered between Thu, 12.6. and Tue, 24.6.
Supplied by

Product details

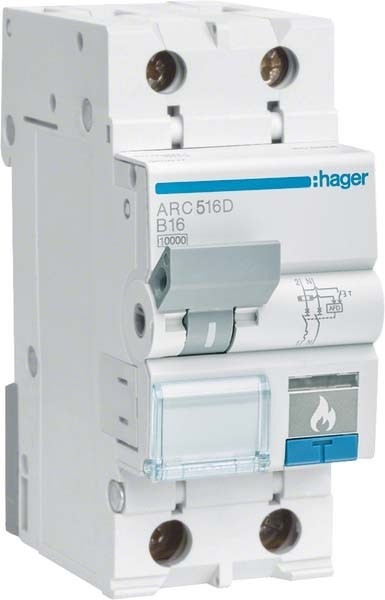

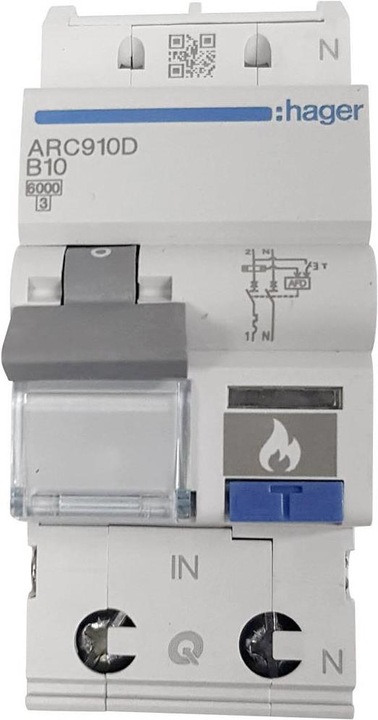

AFDD fire protection switch according to DIN VDE 0665-10/ EN62606, combined with miniature circuit breaker 1P+N, featuring electronic residual current measurement (300 mA) to enhance fire protection in circuits not protected by RCD, with screw technology. Contact protection according to IP2x DIN VDE 0106 part 100, blue test button, and AFD trip indication. Simple individual removal from the busbar system. With VDE symbol. Suitable for retrofitting of additional devices. Labeling option directly on the device.

Key specifications

Circuit breaker type
FI-LS fire protection switch
Length
70 mm
Width
35.50 mm
mounting style
Top-hat rail
number of poles
2
Item number
10036571

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
ARC510D
Release date
31.10.2018

Circuit Breaker Features

Circuit breaker type
FI-LS fire protection switch
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
10 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
35.50 mm
Height
85 mm
