Hager Small Distribution Board FB3008LN

Manufacturer: Hager
Designation: Small Distribution Board F30, 450x450x128
Type: FB3008LN
Mounting Type: Surface-mounted
Width in Division Units: 1
Type of Cover: Lid
Lid Design: Closed
Transparent Lid/Door: No
Material of Housing: Other
Height: 450 mm
Width: 450 mm
Depth: 128 mm
Installation Depth: 84 mm
Installation Width: 300 mm
Internal Depth: 84 mm
Grounding Terminal Block: No
Neutral Terminal Block: No
DIN Rail: No
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: White
RAL Number: 9010
Protection Class (IP): IP41
With Lock: No
Type of Closure: Other
Signal-Passing Door: No

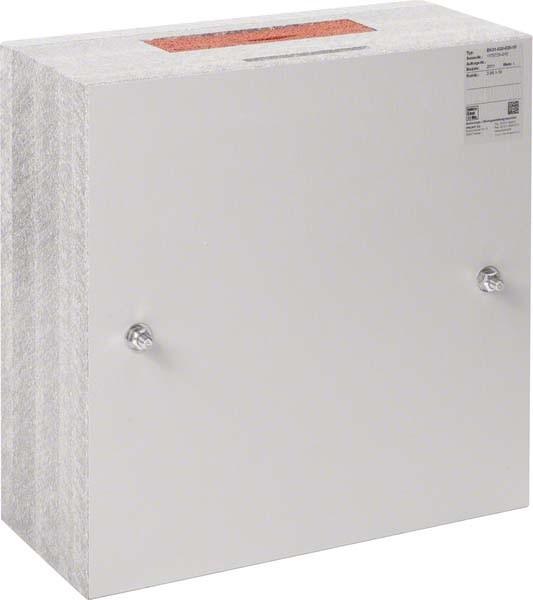

The Hager Small Distribution Board FB3008LN is a fire protection terminal box F30/E30 for surface mounting, designed to secure escape and rescue routes and suitable for the installation of electrical connection elements.

Tests: A fire chamber test has been conducted at an official material testing institute. The requirements according to the MLAR (Model Cable Systems Directive 2005) are met. Building materials comply with classification A2-s1 d0 according to DIN EN 13501-1.

General building authority approvals (DIBt): Fire resistance class corresponding to a fire resistance duration according to DIN 4102-2 (F30) as well as in accordance with DIN 4102-12 (E30) for the functional integrity of electrical cables.

The terminal box is constructed in a layered design from non-combustible fire protection panels according to DIN 4102-1. It features a closed bottom, a lid with a handle recess, fastening material, and an opposing cable entry with a cable seal that automatically expands in the event of a fire. Pre-drilled holes allow for easy installation of components.

Note: The housing can be finished with various surfaces (decor/paint/veneer/metal) from the manufacturer.
