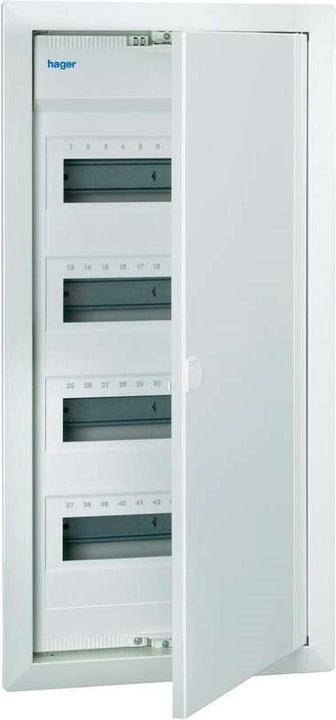

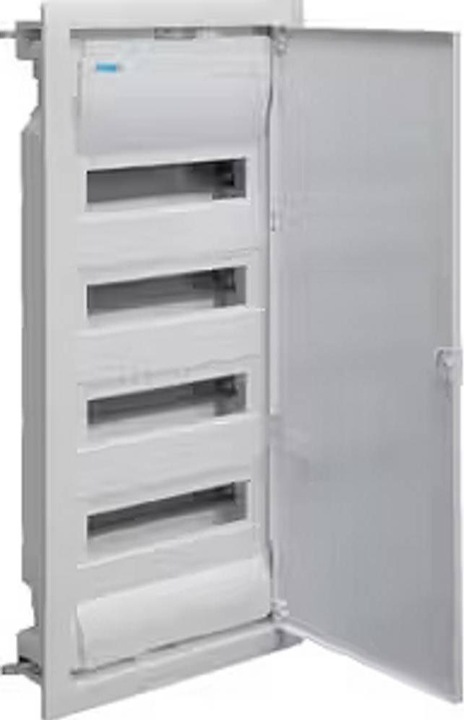

Plastic hollow wall distribution box, compliant with DIN VDE 60670-24 and DIN 43871, suitable for use in residential buildings according to DIN 18015. Designed for the installation of devices up to 63 with a mounting depth of 70 mm according to standard DIN 43880, rated voltage 400 V, 50 Hz. Protection class IP30, protection class II, insulated.

Consists of: Plastic wall box with standard cable catch and breakable cable entry sliders with snap fastening, as well as an integrated spirit level. Hollow wall mounting with quick-fix lever, can be mounted on the side or top/bottom. Device carrier made of galvanized steel sheet, DIN rail can be installed individually insulated. Device cover made of plastic with a 46 mm device slot, quick-release fastening with a 90° rotation, can be sealed as standard.

Rotatable frame with door made of powder-coated and baked steel sheet, with 15 mm plaster compensation. Door flush with the front and equipped with internal manually operated hinges. Door lock with a flush handle recess and self-retracting handle, door stop can be on the right or left without frame mounting. Standard wiring diagram holder in the door as well as an integrated lateral cable management channel with cable retaining clips.
