Hager MBN340. Number of poles: 3P. AC input frequency: 50/60 Hz, Nominal current output: 40 A.
10 pieces in stock at third-party supplier
Product details

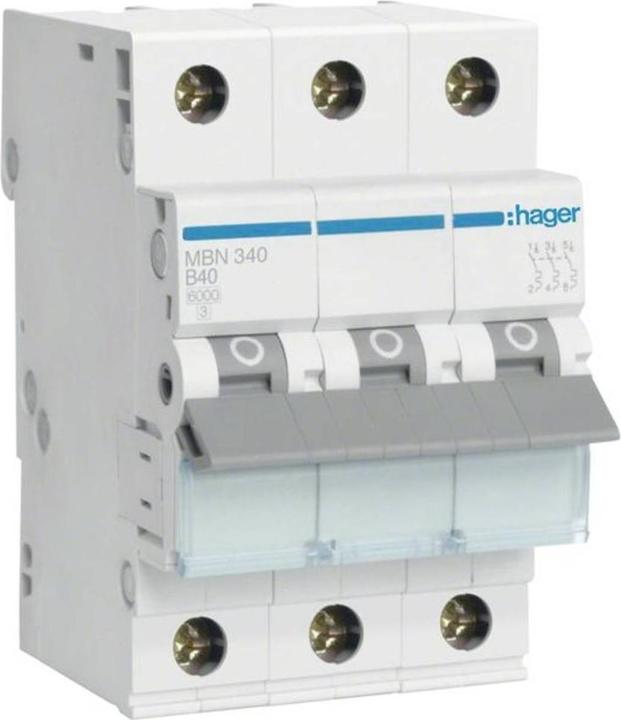

Hager Circuit Breaker MBN340
Manufacturer: Hager
Designation: 3-pole Circuit Breaker B-40A, 6kA
Type: MBN340
Installation Depth: 70 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 40 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Uimp: 4 kV
Type of Voltage: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Switching Capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50-60 Hz
Power Loss: 16.9 W
Energy Limitation Class: 3
Flush Mounting: yes
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: yes
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25 to 70 °C
Connectable Conductor Cross-Section Multi-stranded: 1 to 25 mm²
Connectable Conductor Cross-Section Single-stranded: 1 to 35 mm²
Explosion-Proof: no
Hager Circuit Breaker MBN340: further details
3-pole circuit breaker 6kA B-characteristic 40A 3 modules. Circuit breaker according to DIN EN 60898-1 (VDE 0641-11) with time-delayed thermal tripping device for overload protection and electromagnetic tripping device for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail assembly by unlocking the DIN rail quick fastening.
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
number of poles | 3 |
Width | 52.50 mm |
Item number | 18255736 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | MBN340 |
Release date | 10.1.2022 |
External links |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | B |
Rated current | 40 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IPX2 |
Country of origin | China |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Items per sales unit | 1 pcs. |
Width | 52.50 mm |
Height | 83 mm |
Weight | 370 g |
