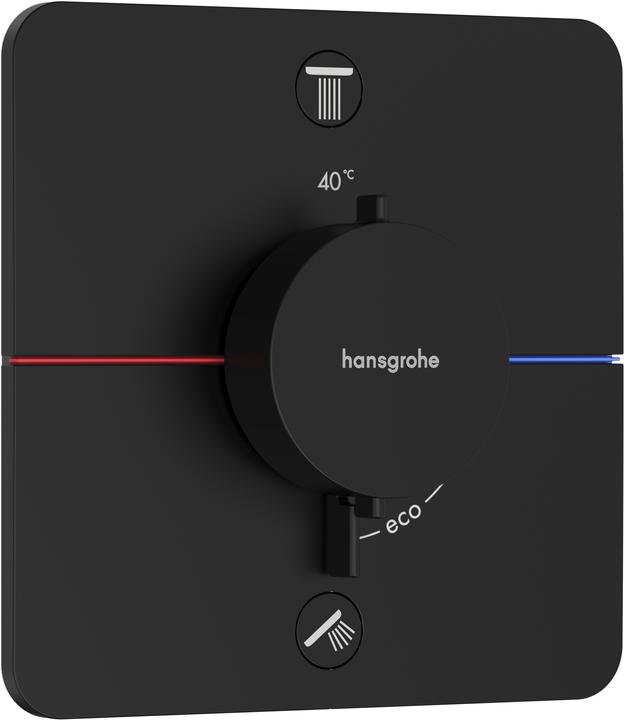

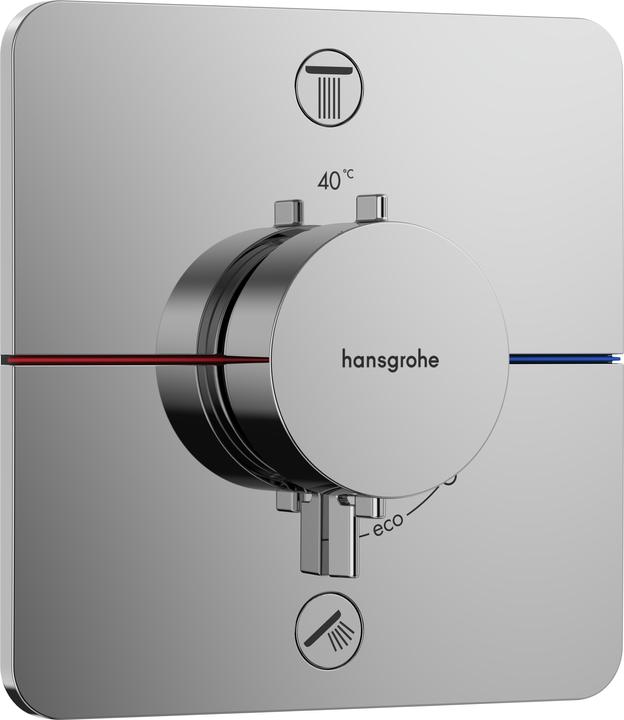

Hansgrohe ShowerSelect Comfort E1 Concealed Thermostat

Product details:

• For two outlets
• Simultaneous use of multiple outlets
• Large Select button for easy on/off control of an outlet
• Volume control with stop function
• Thermostat cartridge for temperature regulation
• Start/stop valve for operating devices
• Flat escutcheon for more space in the shower
• Soft Edge escutcheon can be adjusted by +/- 3
• Prefabricated function block for easy installation
• Handles always at the same height, regardless of the depth of the main body
• Adjustable temperature limit
• Safety lock at 40 °C
• Thermostat offers the possibility for thermal disinfection

Material (Handles/Button): Metal

The thermostat comes with small and large buttons as well as hand shower, spray, and bath buttons.

Technical specifications:

• Connection type: iBox universal 2 main body
• Main body not included, please order separately.
• Max. flow rate at 3 bar: 22.1 l/min
• Flow rate upper outlet: 20 l/min
• Flow rate lower outlet: 20 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise group: I
• Flow class: B

Scope of delivery:

• Thermostat
• Function block
• Mounting materials and installation instructions.
