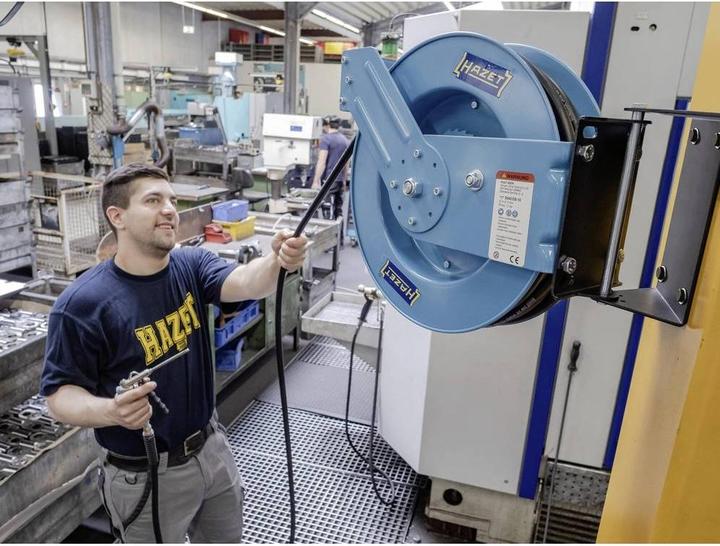

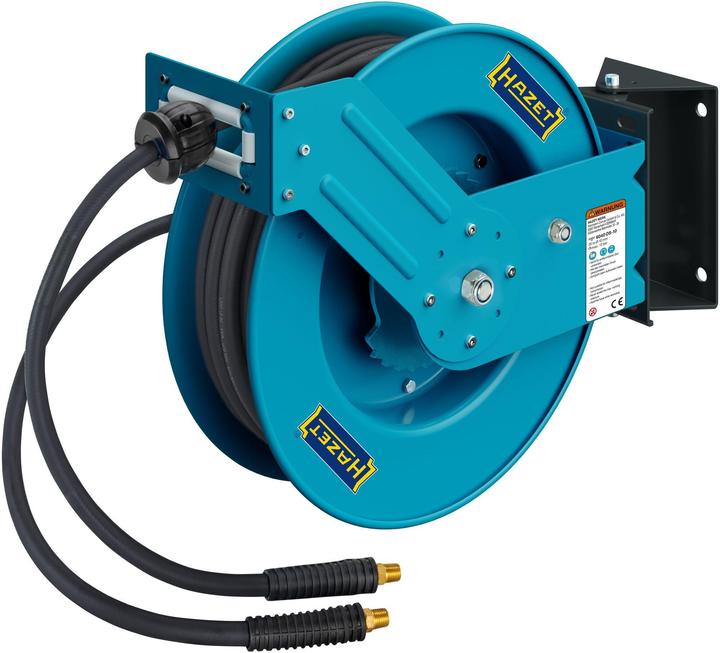

Application: The automatic hose reel creates order in the workshop – no hoses lying around, thereby reducing the risk of accidents.

• Robust steel construction with roller guidance
• Hose inner diameter: 10 mm
• For compressed air
• German air connection nipple for air inlet
• End stop
• Spring return with ratchet locking holders
• Hybrid polymer hose, black
• Integrated hose inlet
• Swiveling base – maximum swivel range: 180°
• Open design to prevent dirt accumulation
• Visual inspection of the hose
• Connection hose length: 1 m

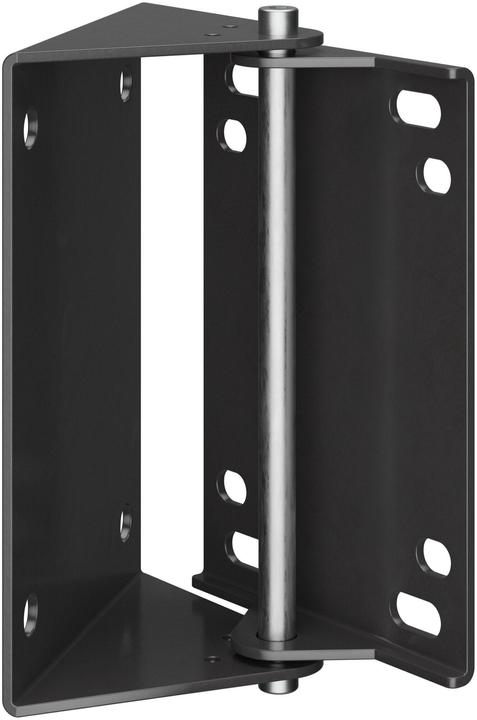

• Mounting via metal bracket or swivel base (included)

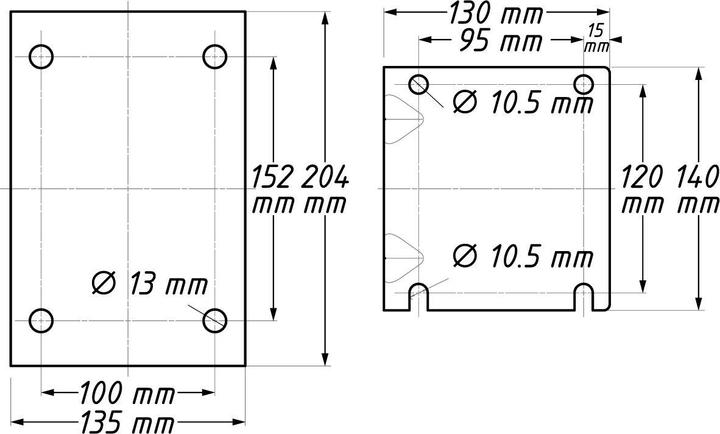

• Drilling template on cardboard packaging for easy installation
• Dimensions: 400 x 186 x 522 mm (including swiveling base)
• Usable with HAZET safety coupling
• Air connection inlet: external thread 16.41 mm (3/8″)
• Air connection outlet: external thread 16.41 mm (3/8″)
• Hose length: 20 m
• Max. operating pressure: 12 bar
• Dimensions: 400 mm x 186 mm x 426 mm
• Net weight: 11.68 kg
• Operating temperature range: -40°C – 60°C.
