The MULTI-MONTI®-plus (MMS-plus) screw anchor is an advanced version of the MULTI-MONTI® concrete screw. It is screwed directly into a pre-drilled hole without the need for a plug and is immediately load-bearing. The reinforced serration at the screw tip cuts an internal thread into the building material during installation. This creates a form fit, which ultimately facilitates the anchoring. This not only simplifies the installation process but also ensures a high level of application safety for the craftsman. The MULTI-MONTI®-plus concrete screw can be processed close to edges and without a torque wrench, is completely disassemblable, and can be reused after testing.

Product advantages of MMS plus: the installation-friendly screw anchor even with heavily worn drill bits, optimized concrete thread with full thread variants for the highest demands, two setting depths for more flexibility, can be installed with machines and is immediately load-bearing, expanded product range and dimensions for different applications, architectural conditions, and areas of use, serrated functional tip reduces wear and allows for multiple uses in temporary fixings, larger approved range for ETA Option 1 starting from MMS-plus 6 including seismic from diameter 10, European Technical Assessment: ETA 15/0784, ETA-15/0785, ETA-20-0132.

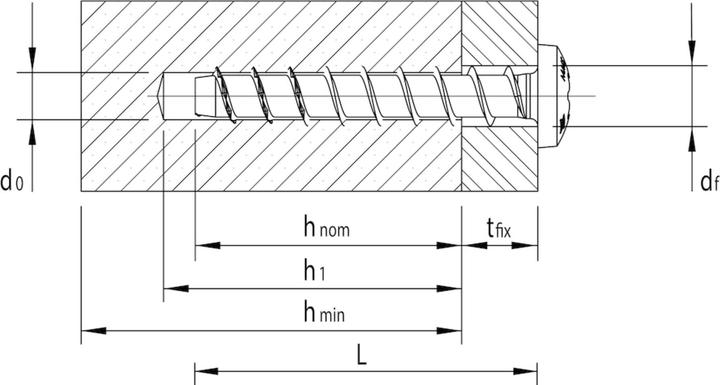

Surface: galvanized-blue, head shape: round head, drive: T40, brand: Heco, form: MMS plus, d1 (mm): 10, drill ø (mm): 8, ETA assessment: ETA Option 1, max. tfix usable length (mm): 5, h1 drill depth (mm): 75, material: steel, head ø (mm): 19.5, L (mm): 70, size (mm): 10.0 x 70, hnom1 anchoring depth (mm): 65, hnom2 anchoring depth (mm): 50, min. tfix usable length (mm): 20, thread length (mm): 66, quantity (ST): 25.
