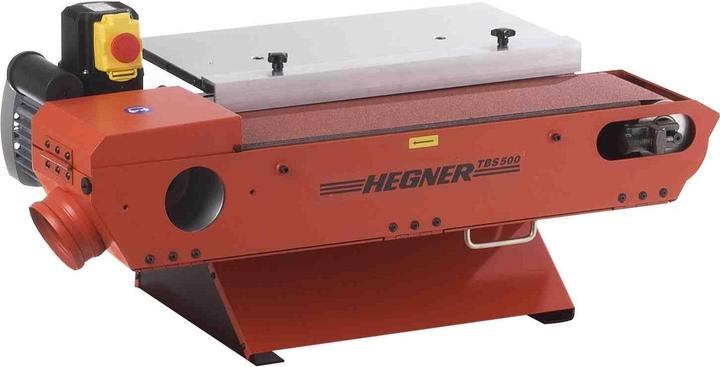

Hegner Table Belt Sander TBS 500

• The sanding unit is adjustable from horizontal to vertical position. A large scale allows for precise angle adjustment from 0° to 90°.

• Capability for continuous sanding of long materials.

• The table sander features a closed housing, completely covering the drive and deflection rollers as well as the sanding belt, which runs on a graphite-coated sanding surface.

• Convex rollers ensure precise tracking of the sanding belt.

• A cast iron tensioning fork guarantees accurate belt tracking adjustment.

• Motor in AC version 230 V.

• The anodized sanding table is adjustable in height and relative to the sanding belt (guided in six ball bearings), allowing the sanding belt to be utilized even when the sanding unit is tilted.

• With the internal cylindrical grinding attachment (optional accessory), external and internal contours can be sanded with interchangeable sanding rollers.

• The machine is delivered ready to use with a 3 m cable and plug.

Technical Details

• Sanding belt width: 150 mm.

• Motor: 230 V AC/50 Hz.

• Sanding belt length: 1600 mm.

• Power output: 1.3 kW/1.8 HP.

• Sanding length: 530 mm.

• Space requirement L x W x H: 960 x 450 x 310 mm.

• Sanding table size: 520 x 260 mm.

• Color: red (RAL 2002).

• Belt speed: 14.6 m/sec.

• Weight: approx. 53 kg.

• Roller diameter drive side: 100 mm.

• Roller diameter belt guiding side: 80 mm.

• Dust extraction ports on both sides: 100 mm.

Delivery Contents

• 1 miter gauge with stop rail.

• Graphite sanding surface.

• 1 sanding belt grit 80 for wood.
