Hensel Enystar automatic enclosure FP 1218

Manufacturer: Hensel
Designation: Enystar automatic enclosure
Division units: 24
Type: FP 1218
Mounting type: Surface mount
Number of rows: 2
Width in division units: 12
Type of cover: Door
Design of cover: Closed
Transparent cover/door: Yes
Material of enclosure: Plastic

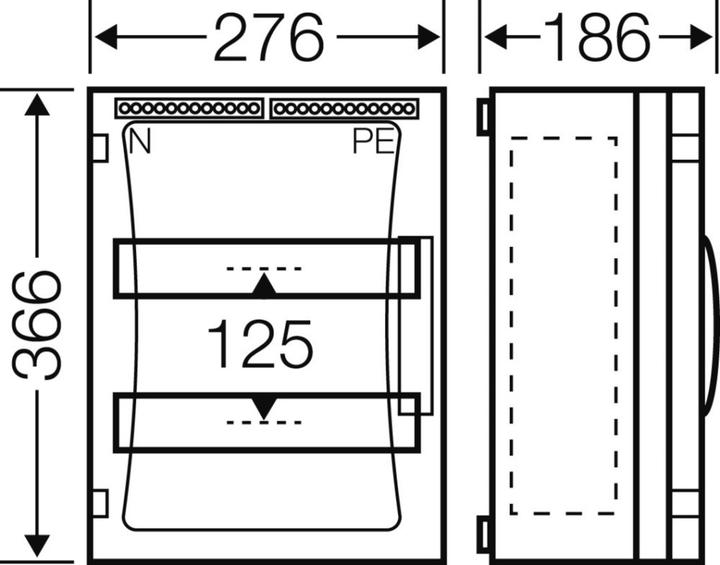

Height: 366 mm
Width: 276 mm
Depth: 186 mm
Installation depth: 93 mm
Internal depth: 136 mm
DIN rail: Yes
With mounting plate: No
Mounting option: Yes
EMC version: No
Color: Gray
RAL number: 7035
Protection class (IP): IP66
With lock: No

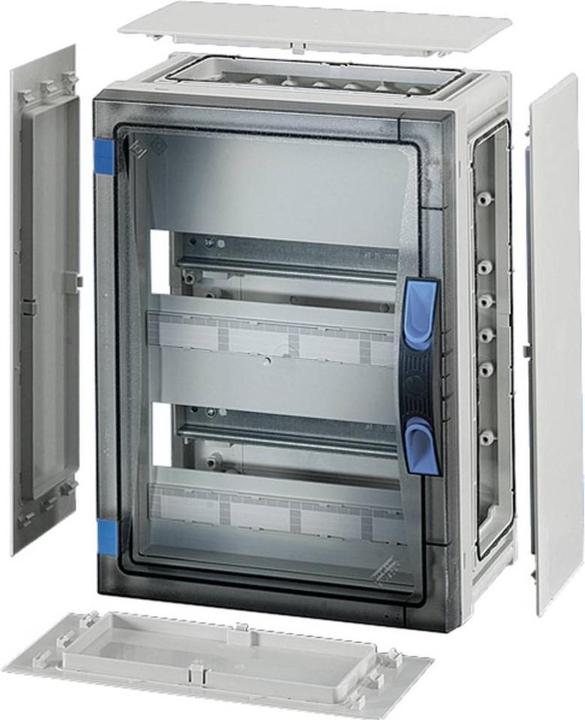

Enclosure with door for the construction of installation distribution boards up to 250 A for operation by laymen according to IEC 61439-3. Open enclosure walls for combination or as a single enclosure with closing plates. Made of high-quality polycarbonate, with protective insulation. Fast enclosure connection by means of plug-in connectors and integrated seals. Large panel feed-throughs for electrical connection of the enclosures to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Automatic enclosure with 24 pitch units for installation of DIN 43880 rail-mounted devices. With PE and N terminals for copper conductors. N separable for different potentials. With cover strips for closing unused device cut-outs and labeling strips for circuit identification. Transparent door and sealable door lock with manual override. With closure plate set.
