Hensel KV 90 Circuit Breaker Enclosure KV 9336 NT

Manufacturer: Hensel
Designation: KV 90 Circuit Breaker Enclosure 36 TE, IP 65
Type: KV 9336 NT
Mounting Type: Surface-mounted
Number of Rows: 3
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 114 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65

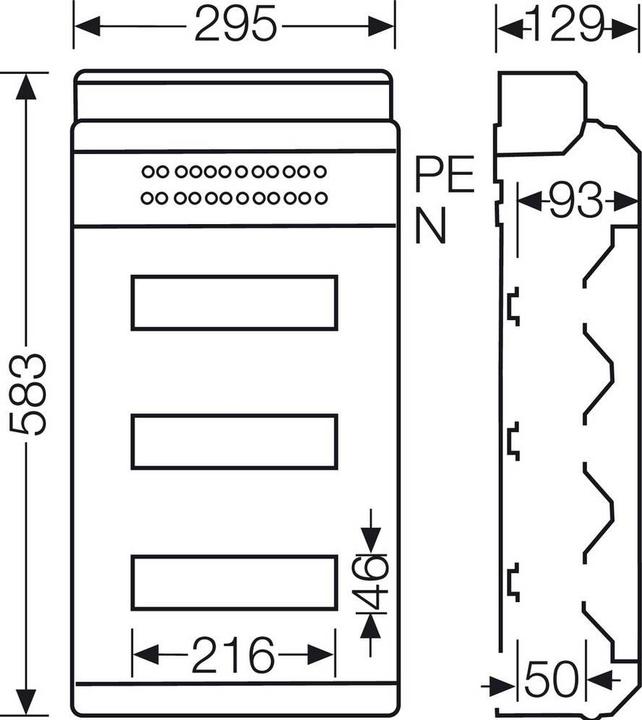

Height: 583 mm
Width: 295 mm
Depth: 129 mm

Hensel KV 90 Circuit Breaker Enclosure KV 9336 NT: Additional Details

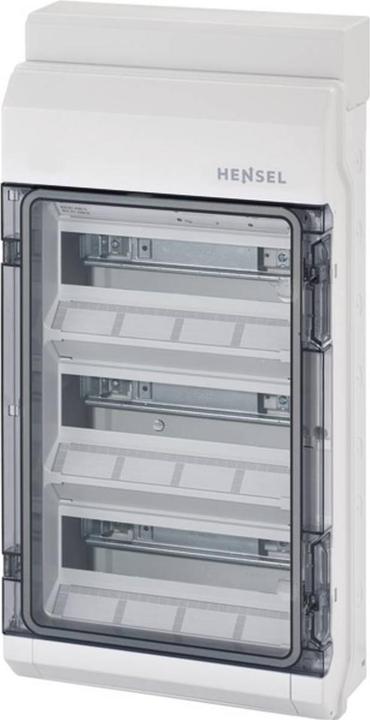

Small distribution board made of high-quality thermoplastic. Suitable for surface-mounted applications in buildings or protected outdoor installations. Features compactly integrated neutral separation terminals using FIXCONNECT® NT terminal technology. Circuit breaker enclosure with 36 division units for the installation of devices with snap-on mounting on DIN rails. Cable entry through integrated elastic sealing membranes. Comes with a transparent door and cable entry cover, integrated accessory compartment, and cover strip for the device cutout. Protection class IP 65.
