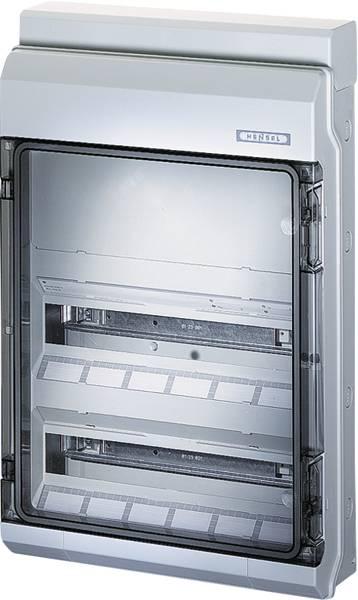

Hensel Distribution Enclosure 2-Row KV 9350

Manufacturer: Hensel
Description: 2-Row Distribution Enclosure
Type: KV 9350
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 18
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 114 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65

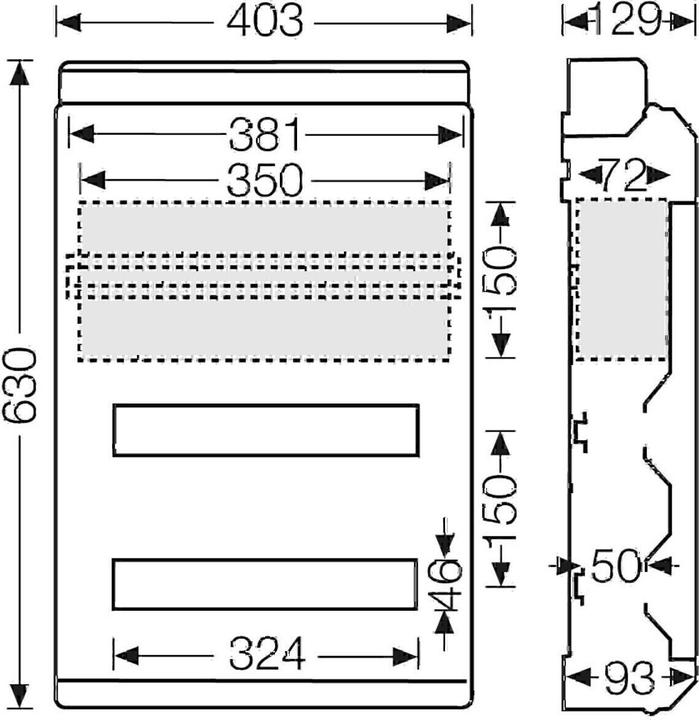

Height: 630 mm
Width: 403 mm
Depth: 129 mm

Hensel Distribution Enclosure 2-Row KV 9350: Additional Details
Small distribution board made of high-quality thermoplastic with space for non-operational devices. Equipped with a DIN mounting rail for devices and terminal blocks. Suitable for surface-mounted applications in buildings or for protected outdoor installations. Distribution enclosure with 36 division units, without PE and N terminal. Designed for the installation of devices with snap-on mounting on a DIN rail. Cable entry via integrated elastic sealing membranes. Features a transparent door and cable entry cover, integrated accessory compartment, and cover strip for the device cutout. Protection class IP 65.
