Hensel Automatic Enclosure Mi 1455

Manufacturer: Hensel
Designation: Automatic Enclosure 56TE
Type: Mi 1455
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 28
Type of Cover: Lid
Cover Design: Closed
Transparent Lid/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 146 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65

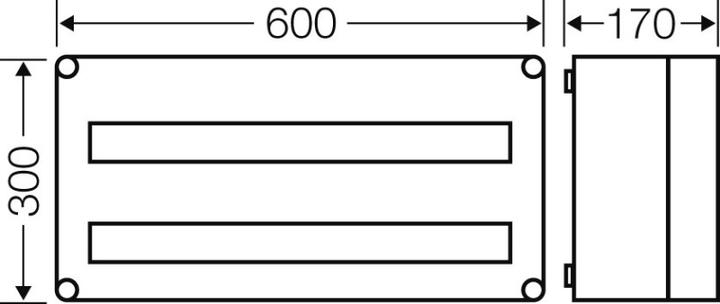

Height: 300 mm
Width: 600 mm
Depth: 170 mm

Hensel Automatic Enclosure Mi 1455: Additional Details

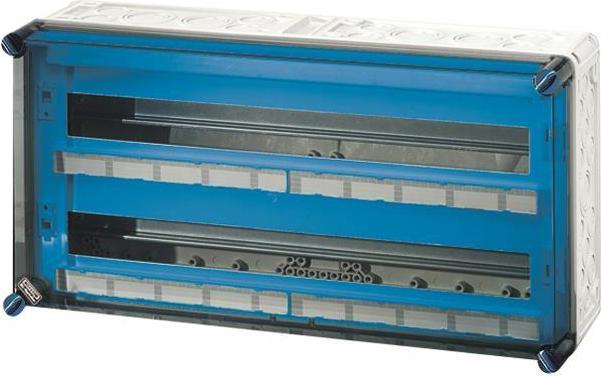

Enclosure for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. Made of high-quality, protection-insulated polycarbonate. Wall penetrations with large openings for the electrical connection of the enclosures to each other. Cable entry on all enclosure walls via metric pre-formed openings or mounting flanges. Enclosure can be wall-mounted using external tabs or mounting rails. Automatic enclosure with 56 division units for the installation of modular devices according to DIN 43880. Without PE and N terminals. Includes cover strips to seal unused device cutouts and labeling strips for circuit identification. Transparent lid, lid locks for manual operation. With removable support frame and grounding connection.
