Name: Charge controller MPPTplus 20A MPPT 1
Brand: IVT
SKU: 8493785
Price: 189 EUR
Availability: InStock

productDetailPageQuery

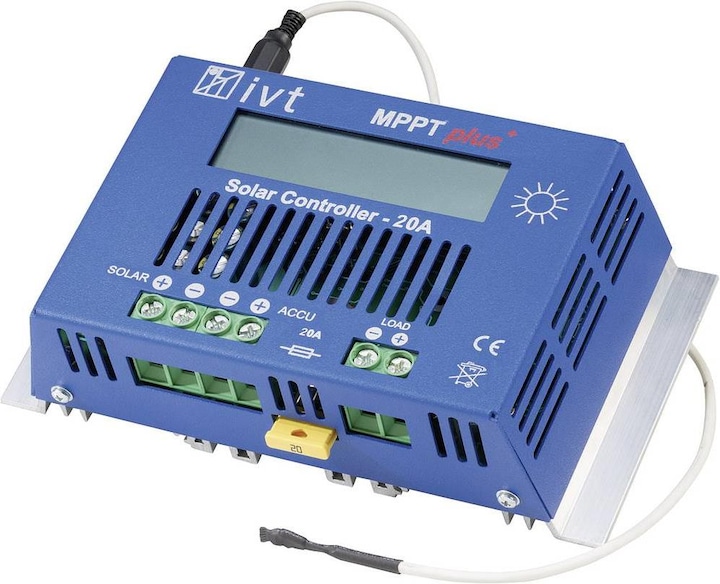

High-quality, modern microprocessor-controlled MPPTplus+ Solar Controller. It ensures the most efficient use of the solar power from your solar panels through the MPPT (Maximum Power Point Tracker) for regulated charging of the connected solar battery. The switchable DC load output allows for direct connection of various consumers to the solar charge controller. Optimal adjustment of the charging behavior for different battery types (Gel, AGM, LiFePO4) is achieved through innovative control via dip switches. The clear LCD display provides the user with comprehensive information about the current operating status.

Maximum Power Point Tracker (MPPT): The most efficient operating point of the solar panels changes due to various influences such as temperature, irradiance, and the type of solar cells. The MPP (Maximum Power Point) is continuously monitored and controlled by the internal microprocessor of the solar controller to ensure the battery is charged with the highest possible current.

Automatic Voltage Detection 12/24 V: The solar charge controller can be used for 12 V or 24 V systems. The system voltage is detected automatically but can also be set manually.

Deep Discharge Protection: To protect the battery from irreparable damage due to deep discharge, the connected consumer at the load output is switched off when the discharge cutoff voltage is reached. The load output will be reactivated, depending on the corresponding settings, once the battery has been sufficiently recharged.

LC Display: Modern and clear LCD display. It shows current system information such as the incoming solar voltage, battery charging status, or the charging and discharging process. Additional display when a load output is active.

Temperature Compensation: With the included temperature sensor, the charging cutoff voltage can be optimized according to the ambient temperature.
