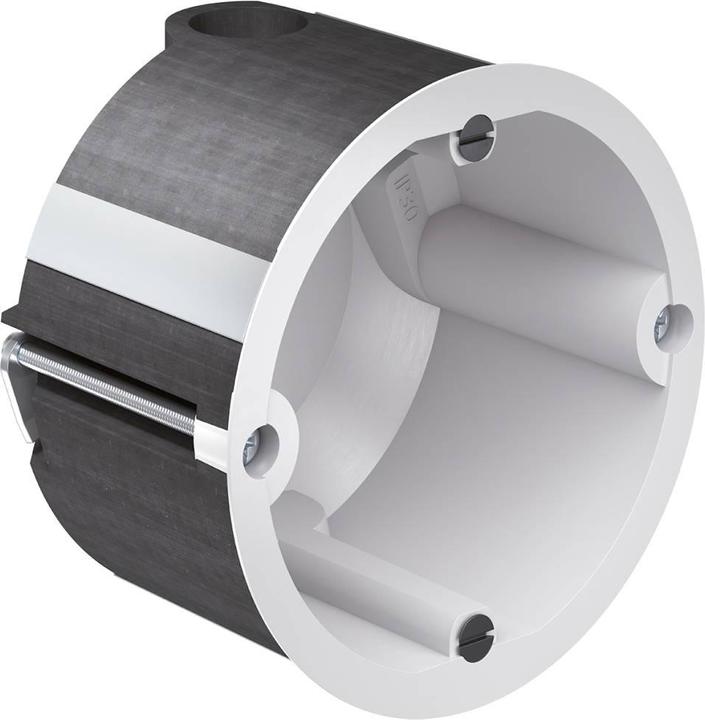

Kaiser Device Connection Box 9464-15

Manufacturer: Kaiser
Designation: Device Connection Box Hollow Wall HWD B15
Type: 9464-15
Mounting Type: Hollow Wall
Shape: Round
Design: Device Connection Box/Box
Version: Single
With Rotatable Ring: No
Couplable: Yes
Filling: None
Diameter: 74 mm
Depth: 54.5 mm
Internal Depth: 54.5 mm
Suitable for Wall/Panel Thickness: 7-40 mm
For Number of Device Inserts: 1
Device Attachment: Screws
With Screws: Yes
Housing Entry Through Breakout Opening: No
Housing Entry Through Sealing Membrane: No
Housing Entry Through Pipe Socket: No
Housing Entry Through Step Membrane: No
Suitable for Cable Diameter: 4-11.5 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 4
Number of Included Bushings: 5
Material: Plastic
Halogen-Free: Yes
Color: White
Protection Class (IP): IP3X
Cover Version: None
Transparent Cover: No
Cover Attachment: Screwed
Sealability: No
Function Maintenance: None
With Shielding: No
Air Tight: Yes
Max. Conductor Cross-Section: 2.5 mm²
Clamp Position Fixed: No
Lamp Hook Attachment: No
Socket: Other
Special Application: Fire Protection
With Partition Wall: No

Kaiser Device Connection Box 9464-15: Additional Details
Device Connection Box HWD B15 (9464-15). Hollow wall box HWD B15 for separating surfaces of category B15 reacts quickly in the event of a fire. The integrated insulating layer foams up and reliably seals the installation opening. The hollow wall boxes HWD B15 serve to shield against fire and smoke towards the fire protection zone and maintain the B15 function of the fire protection wall for at least 30 minutes of exposure to flames.
Application Area: For Built-in Devices | Halogen-Free: Yes | Milling Hole Ø: 74 mm | Depth: 54.5 mm | Installation Type: Fire Protection Shipbuilding.
