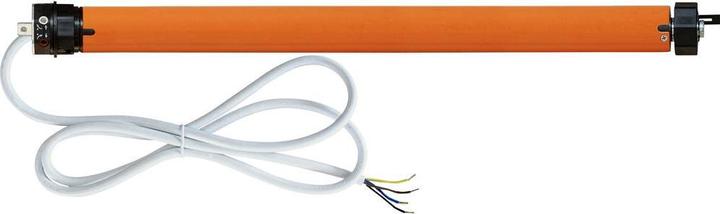

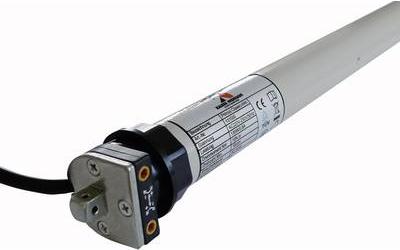

The Primus Classic Mercato Mini roller shutter drive is a mechanical tubular motor for roller shutters up to 2.8 square meters. This roller shutter drive allows the end points to be set mechanically using the included adjustment tool on the adjustment screws at the motor head. The drive operates whisper-quiet even under load. The torque is 10 Nm and the speed is 17 RPM. The motor is 477 mm long overall, and the motor casing has a diameter of 35 mm. Thanks to the pre-assembled motor head adapter, it fits into common star head clip bearings from well-known manufacturers. The supply voltage is 230 V (50 Hz), and it is classified with protection class IP 44. The roller shutter drive is standardly delivered with a 3 m connection cable and a finished box clip bearing. It is pre-adapted for an octagonal steel shaft with a key width of 40. With the available accessories, it can also be adapted for octagonal steel shafts SW50 and SW60, as well as some round groove shafts.
