Klauke Crimp cable lug

Price in EUR including VAT
Ratings
Delivered between Fri, 4.7. and Tue, 8.7.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

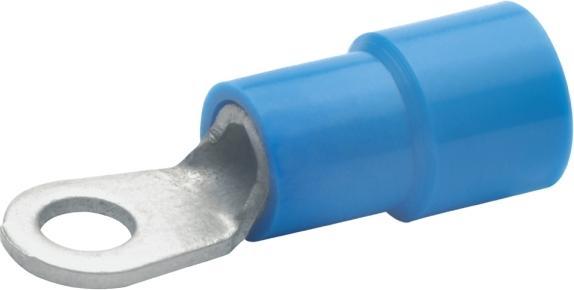

Klauke crimp cable lug 630/3
Manufacturer: Klauke
Designation: Crimp cable lug 1.5-2.5 qmm insulated
Type: 630/3
Connection thread dimension (metric): 3
Flange shape: Ring shape
Conforms to DIN: Yes
Insulation: Polyamide (PA)
Color of insulation: Blue
Nominal cross-section: 1.5...2.5 mm²
Tape material: No
Sleeve shape: Short
Suitable for solid conductors: No
Suitable for stranded conductors: No
Suitable for fine-stranded conductors: Yes
Suitable for high temperatures (up to 650 °C): No
Suitable for enameled wire: No
Suitable for round conductors: Yes
Suitable for flat conductors: No
For tension-resistant connections: No
Material: Copper
Surface protection: Tin-plated
Maximum current (Imax): 18.75 A
Pin dimension (imperial): 3

Klauke crimp cable lug 630/3: More details
According to DIN 46237 with flared insulating sleeve. For fine and superfine stranded conductors. High-quality brazing process in the crimping area. Insulated, halogen-free. Temperature resistance up to 105° C. Easy-entry insulation for easy cable entry. Color coding based on cross-section. Tin-plated. Material: Cu-ETP. Insulating sleeve: PA. EAN: 4012078000901.

Key specifications

Item number
20020013

General information

Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
6303
Release date
16.3.2022

Colour

Exact colour description
Blue
Colour
Blue

Material

Material
Copper
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Clamps diameter
3 mm
Suitable for cable cross-section
2.50 mm²

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
100 pieces
Items per sales unit
100 x

Product dimensions

Length
160 mm
Width
100 mm
Height
30 mm
