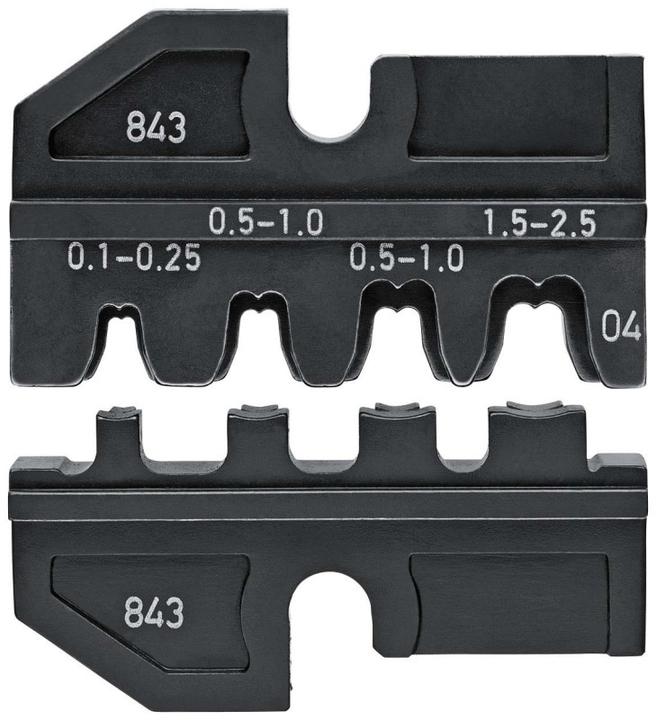

Knipex Crimping die

51 mm
Price in EUR including VAT
5Ratings
BrandMore from Knipex
Delivered between Fri, 27.3. and Tue, 31.3.
7 pieces in stock at supplier
free shipping

Length4

Product details

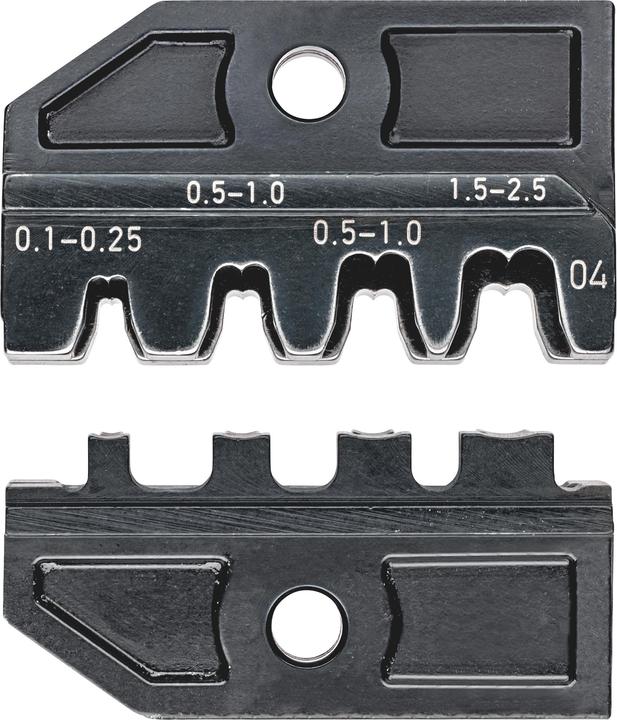

97 49 04 Crimping Tool Application: for uninsulated, open flat connectors. Crimp Nest 1: 0.1 - 0.25 mm² - Connector width 2.8 mm. Crimp Nest 2: 0.5 - 1.0 mm² - Connector width 2.8 mm. Crimp Nest 3: 0.5 - 1.0 mm² - Connector width 4.8 mm. Crimp Nest 4: 1.5 - 2.5 mm² - Connector width 4.8 mm. The optional contact guide 97 49 94 facilitates the positioning of the contacts during the crimping process. Not suitable for specific contact series from e.g. Tyco Electronics, Molex, JST, etc. Application: uninsulated, open connectors (2.8 + 4.8 mm connector width) 0.1 - 2.5 mm². Application: uninsulated, open flat connectors - (2.8 + 4.8 mm connector width) - Capacity in square millimeters: 0.1 - 2.5 mm² - Number of nests: 4 - AWG: 26 - 14.

Key specifications

pliers type
Crimping pliers
application purpose
Crimping
Length
51 mm
Weight
42 g
Documents
Technical data sheet.pdf

General information

Item number
8406636
Manufacturer
Knipex
Category
Pliers
Manufacturer no.
97 49 04
Release date
20.4.2018

Colour

Colour
Black
Exact colour description
Black

Pliers Features

pliers type
Crimping pliers
application purpose
Crimping
Crushing range
0.1 - 2.5 mm²

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
0,34 kg
Climate contribution
EUR 0,12

Scope of delivery

Items per sales unit
1x
Scope of delivery
1 piece

Product dimensions

Length
51 mm
Width
50 mm
Height
10 mm
Weight
42 g

Legal Notice

Product Safety

Package dimensions

Length
8 cm
Width
2 cm
Height
5 cm
Weight
44 g
