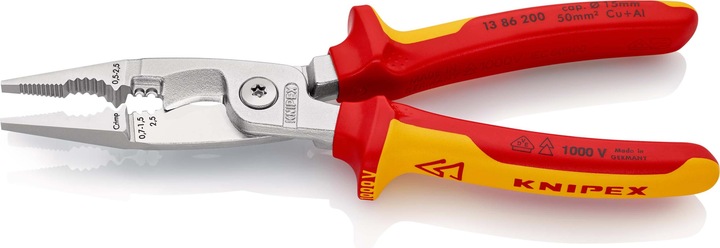

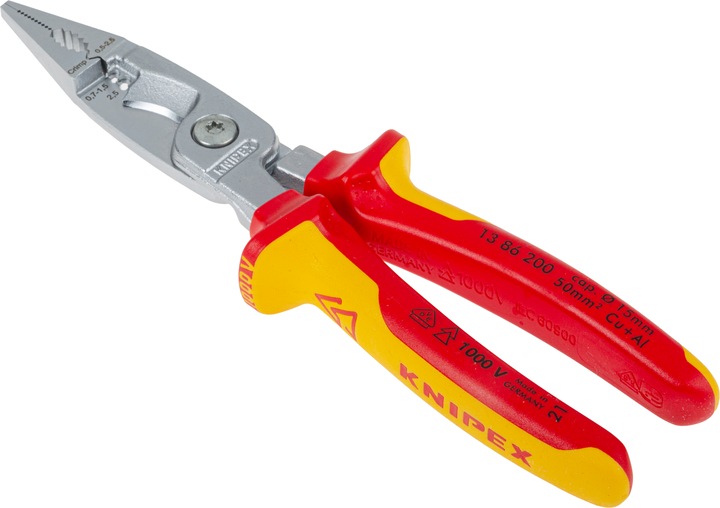

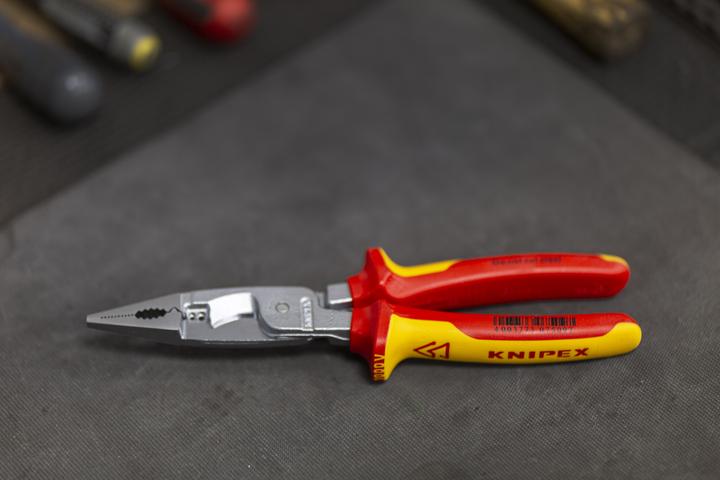

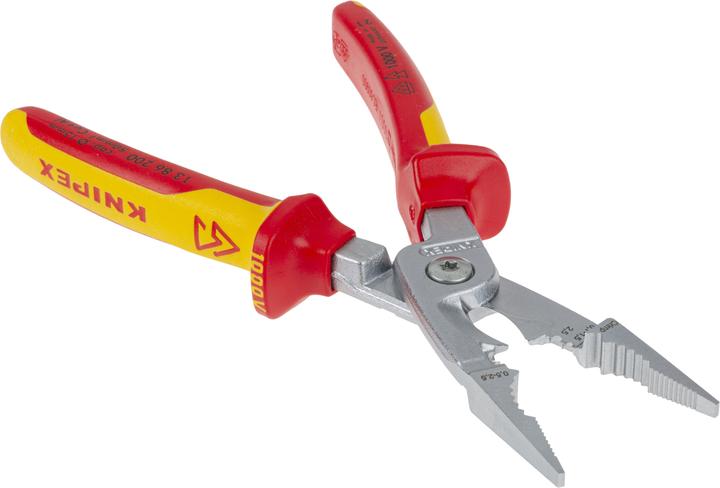

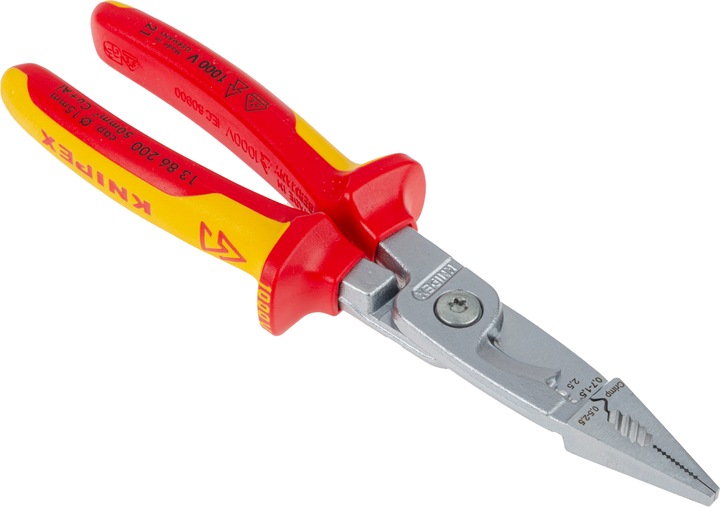

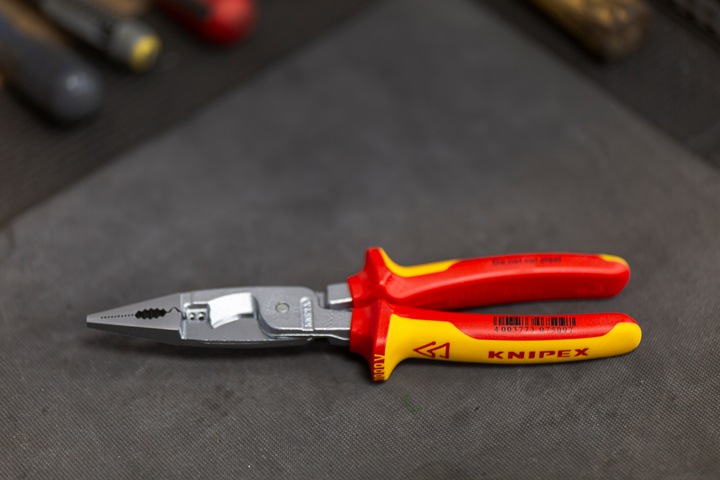

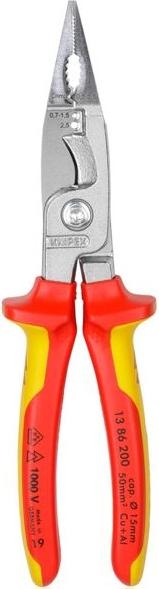

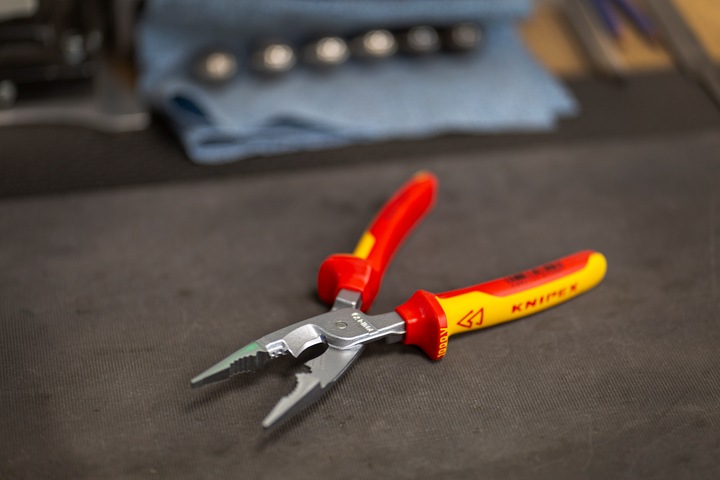

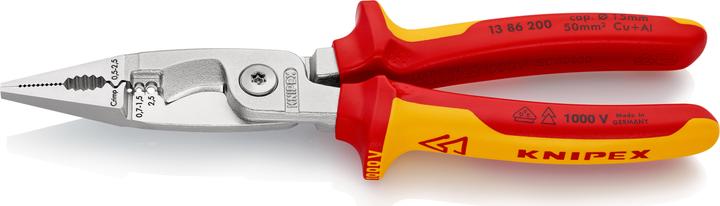

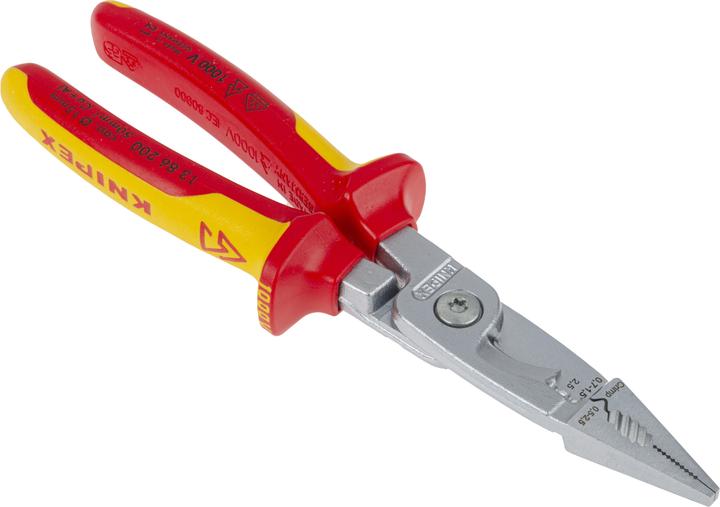

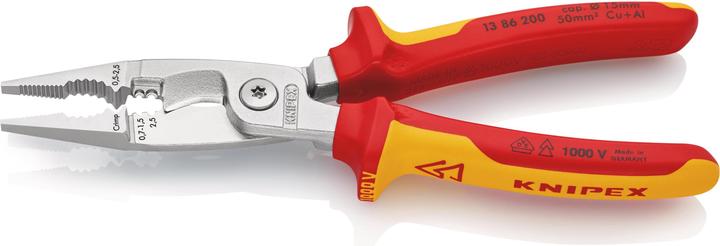

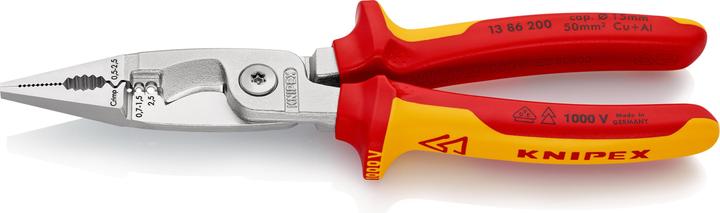

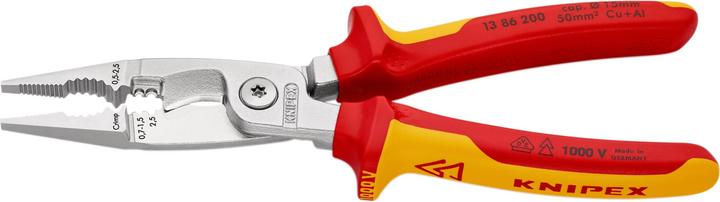

Knipex Pliers for Electrical Installation
200 mmOnly 4 items in stock
Product details

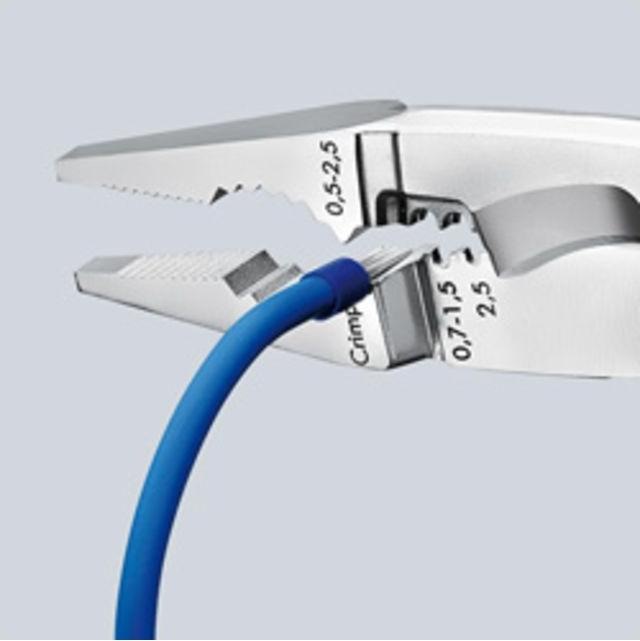

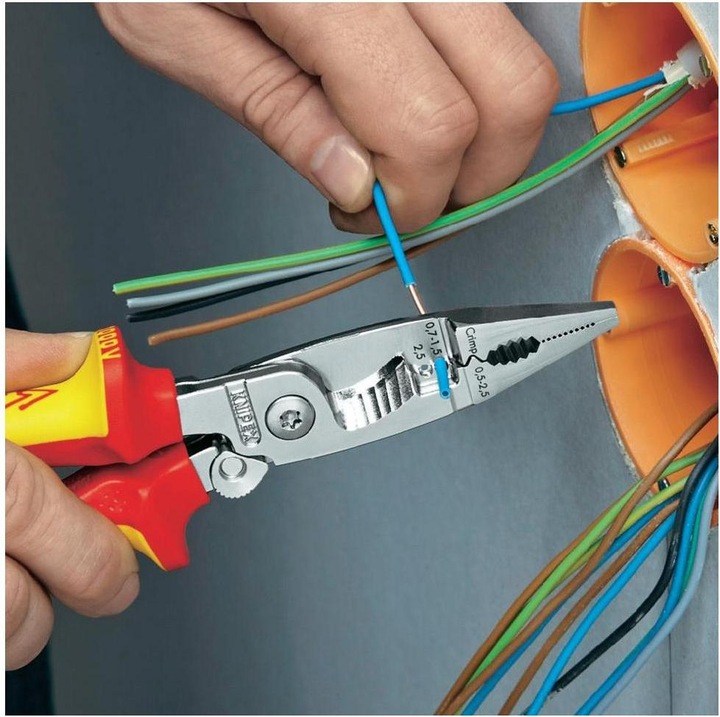

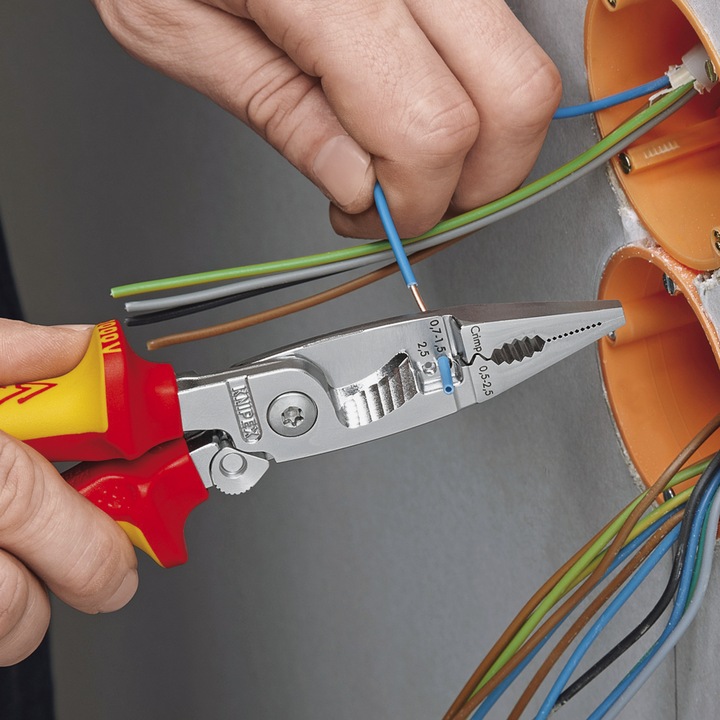

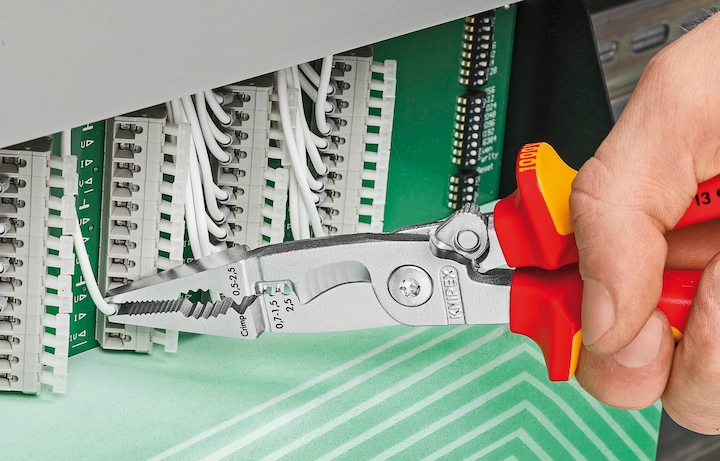

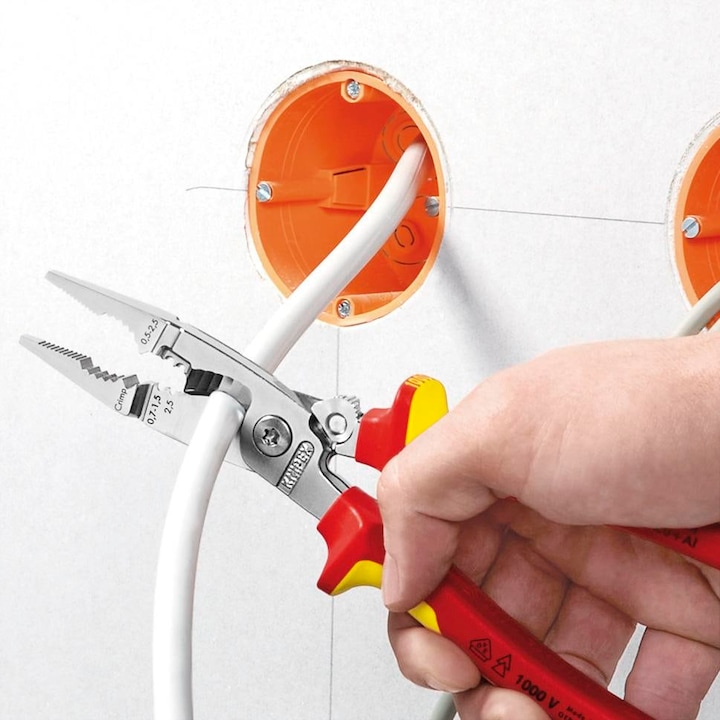

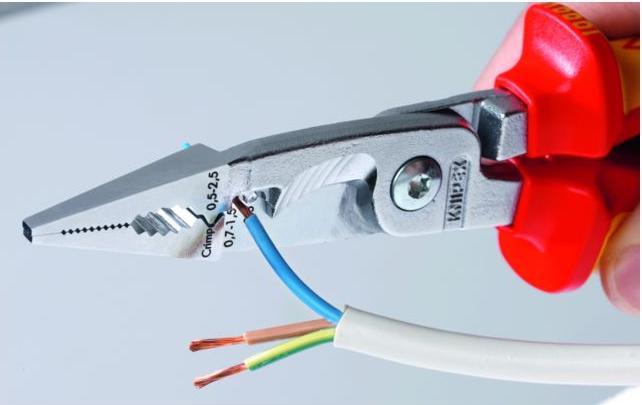

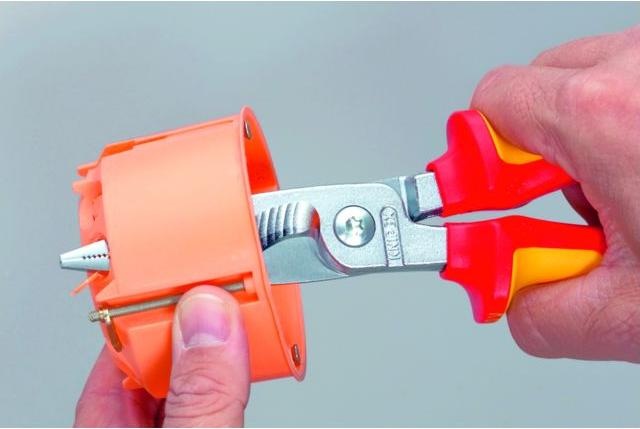

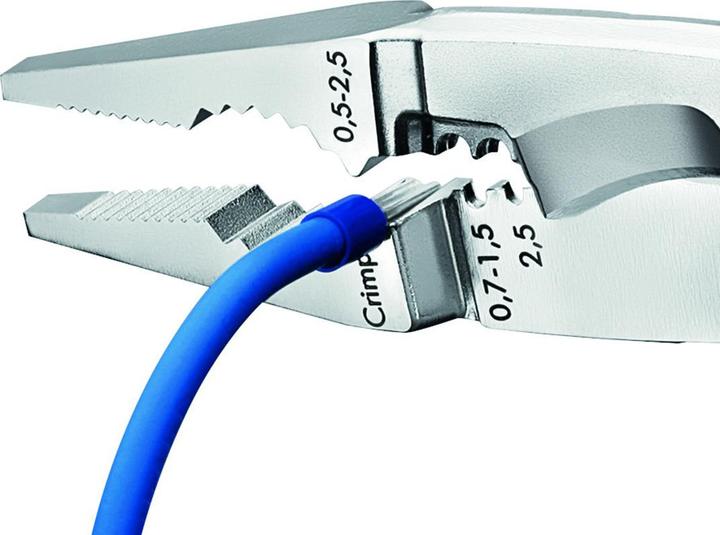

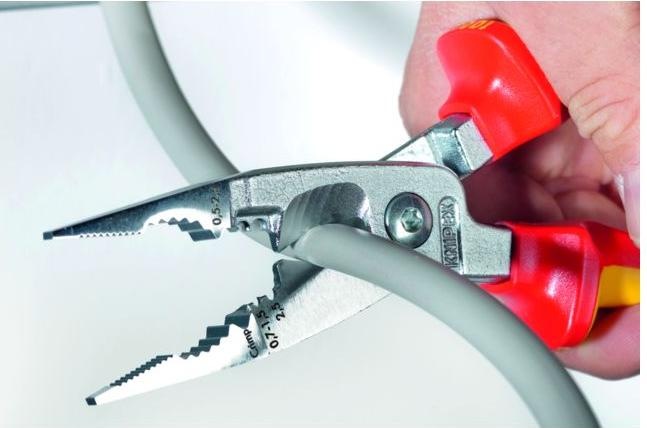

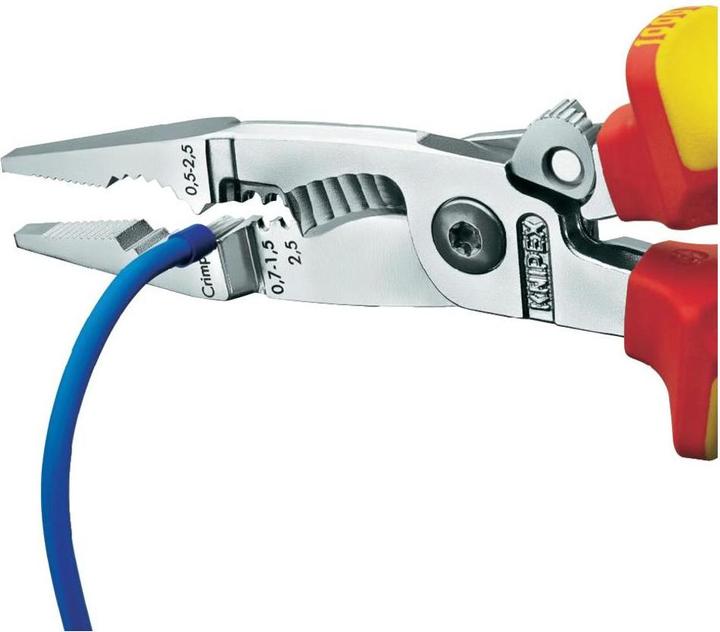

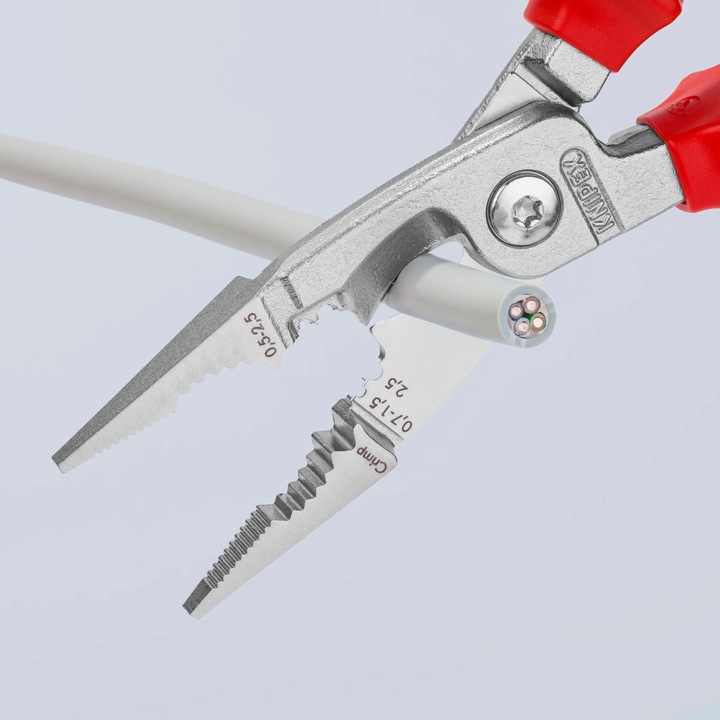

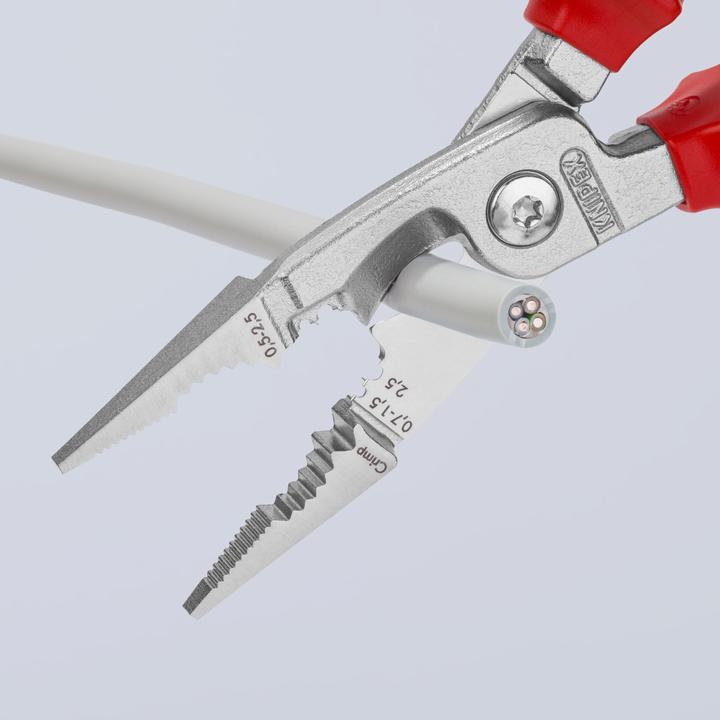

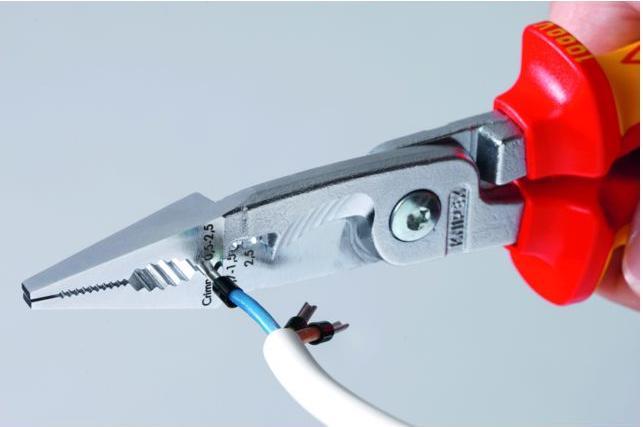

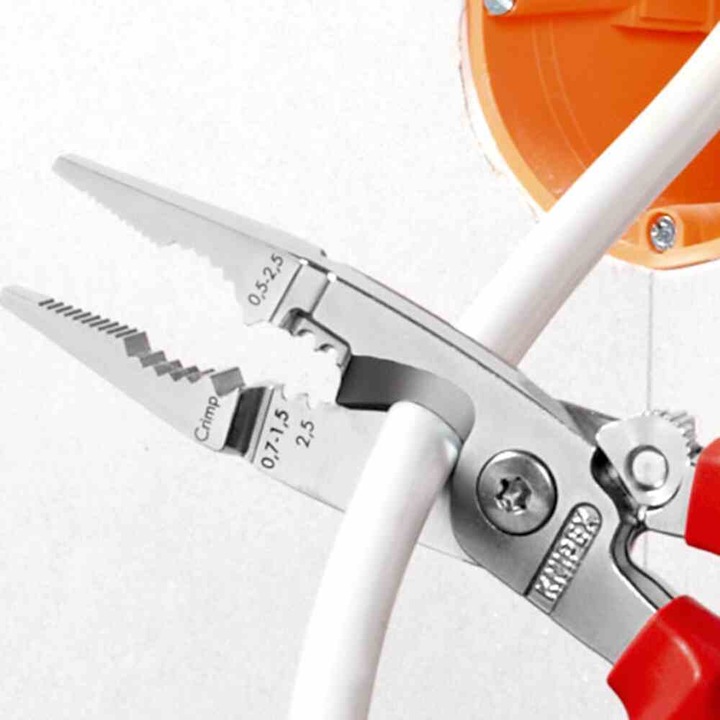

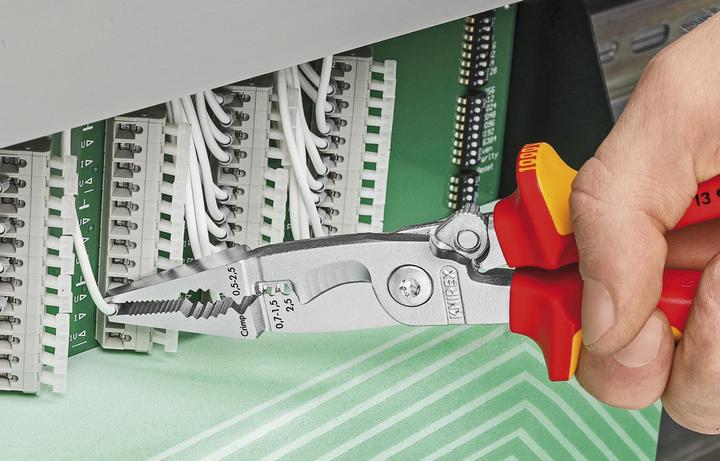

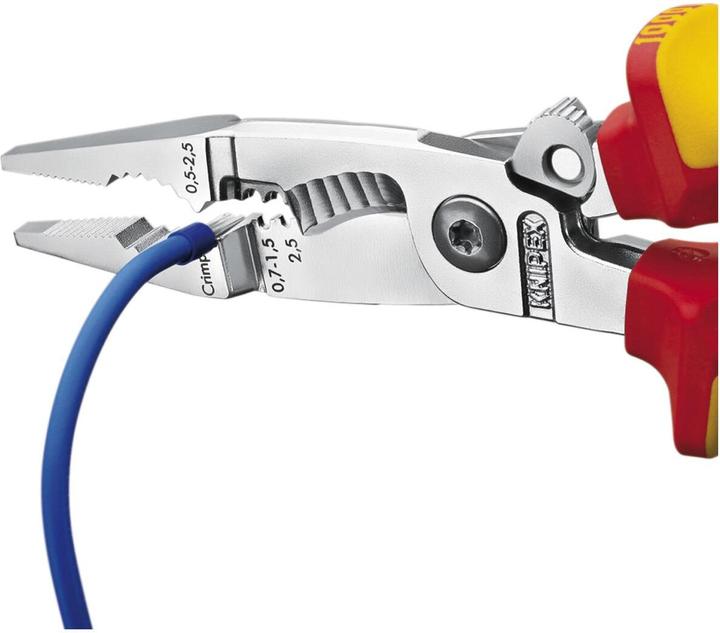

Pliers for Electrical Installation 6 functions in one pair of pliers Multifunctional pliers for the electrical installation To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them Serrated gripping surfaces and pipe grip for gripping flat and round material Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes Stripping holes for conductors of.0.75 - 1.5 mm² and 2.5 mm² Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm Slim dimensions for easy access Bolted joint: precise, zero backlash operation of pliers VDE-tested safety up to 1000 volts. Capacity half-moon Capacity in square millimetresCapacity in square millimetres 0.5 - 2.5 mm² Square drive Capacity square Capacity step-like square Capacity triangular Clamping width hexagon Clamping width round Clamping width square Clamping width
Material group | Metal |
pliers type | Engineers pliers |
Length | 200 mm |
application purpose | Skinning |
Weight | 280 g |
Handle design | Plastic cover |
Documents | |
Item number | 8402110 |
Manufacturer | Knipex |
Category | Pliers |
Manufacturer no. | 13 86 200 |
Release date | 19.4.2018 |
External links |
Colour | Multicoloured |
Exact colour description | Red / Yellow |
Material group | Metal |
Material | Composite, Metal |
surface finish | Chromed |
pliers type | Engineers pliers |
application purpose | Skinning |
Cutting edge hardness (HRC) | 50HRC |
Handle design | Plastic cover |
EN standard | En 60900 |
DIN standard | VDE |
Suitable for | Wire end sleeves |
Jaw mold | Flat |
Top shape | Flat |
Crushing range | 0.75 - 1.5 mm² |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 piece |
Length | 200 mm |
Width | 2.50 mm |
Height | 20 mm |
Weight | 280 g |
Length | 21.40 cm |
Width | 6.60 cm |
Height | 3.50 cm |
Weight | 300 g |
