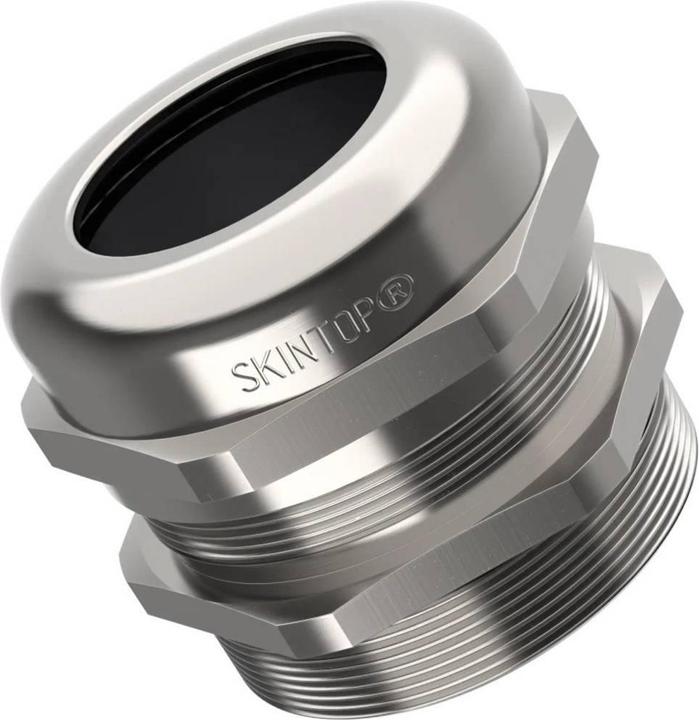

Lapp Accessories SKINTOP-MS-M-BRUSH-50x1.5 MS-M Brush 50x1.5 XL

Manufacturer: Lapp Accessories
Designation: SKINTOP-MS-M-BRUSH-50x1.5 XL or UL
Type: MS-M Brush 50x1.5 XL
Thread type: metric
Thread length: 15 mm
Wrench size: 65 mm
Material quality: brass
Surface protection: nickel-plated
Halogen-free: no
Bending protection: no
With counter nut: no
Type of seal: O-ring
Explosion-proof version: no
For armored cables: no
EMC version: yes
Shielded: yes

Additional details:
Cable gland SKINTOP® MS-M Brush 50x1.5 XL or UL
Cable gland M 50
Clamping range (min./max.): 27 - 35 mm
Wrench size 1: 65
Nickel-plated brass
UV resistant
IP 68 - 10 bar (30 min), IP 69
EMC shielding

Areas of application:
The XL variant is particularly suitable for thick-walled housings due to its especially long connection thread.
Note: For painted, anodized, or powder-coated housings, use the counter nut SKINDICHT® SM-PE-M for potential equalization.
Withstands high chemical and mechanical stresses.
Suitable for outdoor use, considering the temperature range.
For use in control systems, motors, and frequency converters.
For EMC-compliant introduction of copper-shielded cables.

Benefits:
Innovative double lamella basket in sizes M 75 x 1.5 to M 110 x 2 simplifies installation and prevents leverage effects with heavy cables.
Safe, quick, and straightforward installation.
Reliable EMC protection is ensured even after disassembly and reinstallation, as the copper shielding braid is not damaged by the brass brush.
Optimal EMC protection through a unique 360° brass brush that establishes a low-resistance contact between the copper shielding braid and the gland.
Best possible sealing allows for protection class IP 68 (10 bar) and IP 69.
EAN: 4044776085423.
