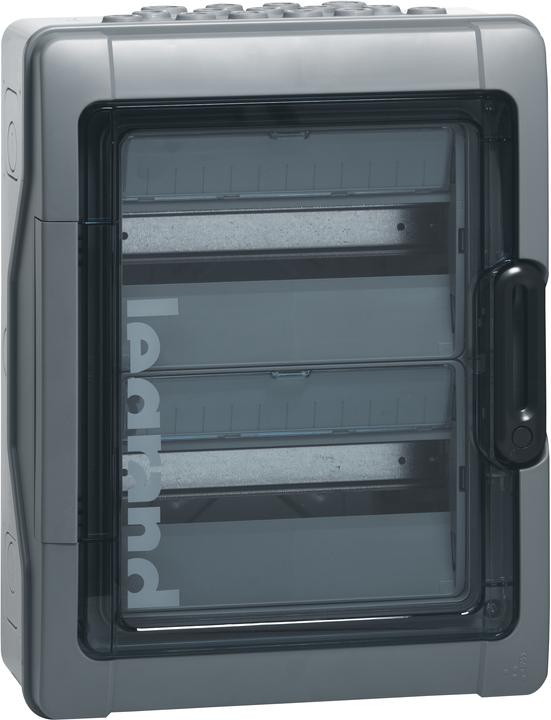

Plexo Moisture-Proof Distribution Box, Junction Box, Surface-Mounted, IP65 - IK09, 2-Row, 36 Modules, Indoor and Outdoor Use, Expandable, Protection Class II, -20 - +70 °C, 432 x 448 x 161 mm.

Optimized Cable Management: The generous rail spacing and height-adjustable mounting rails (individually removable) provide ample space for wiring. The distribution box is 2-row and can accommodate 36 modules.

Quick and Efficient Installation: The removable device carrier allows for wiring outside of the distribution box (e.g., for pre-wiring in the workshop). The individually removable front covers ensure convenient access during maintenance.

Durability: With an IP65-IK09 protection rating, the moisture-proof distribution box is protected against water jets from all directions. The handle ensures optimal sealing with its two-point lock. It protects within a temperature range of -20 - +70 °C.

Versatility: Due to its high protection class (IP65), the moisture-proof distribution box can be used flexibly both indoors and outdoors in your home. The transparent door can be sealed, and there is an option to retrofit it with a lock.

Cable Entries: The included cable entries (membrane) guarantee tool-free cable entry. The UV-resistant seal ensures long-term protection against water and dust.

Included Cable Entries (Membrane): 13x ø 20 mm, 2x ø 25 mm, 1x ø 32 mm are included. Cable glands can also be used if needed.

Cable Entry Pre-Embossings: Top: 13x ø 20 mm, 4x ø 25 mm, 3x ø 32 mm; Bottom: 13x ø 20 mm, 4x ø 25 mm, 3x ø 32 mm; Left: 3x ø 32 mm; Right: 3x ø 32 mm, breakable cable entries available.

Technical Details: Surface-Mounted Moisture-Proof Distribution Box, IP65-IK09, tele gray/silver gray, metric cable entry, including membrane entry, 2-row, 36 modules, -20 - +70 °C, 432 x 448 x 161 mm.
