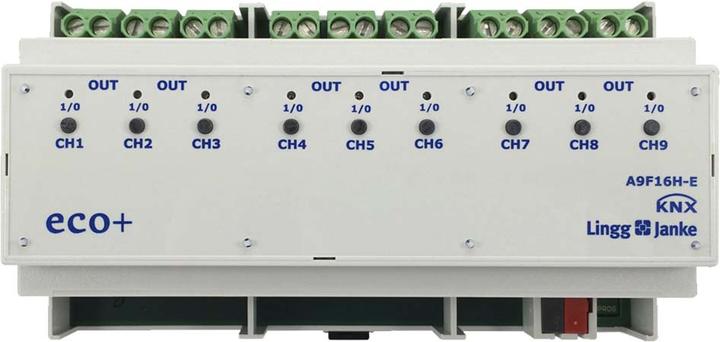

Lingg&Janke switch actuator 9-fold A9F16H-E

Manufacturer: Lingg&Janke
Designation: Switch actuator 9-fold 16A A9F16-E
Type: A9F16H-E
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Installation type: REG
Width in division units: 9
Suitable for C-load: Yes
Max. number of switching outputs: 9
Max. switching current: 16 A
Rated current: 16 A
Rated operating voltage: 250 V
Different phases can be connected: Yes
With bus coupling: Yes
Modular expansion option: No
Protection class (IP): IP20

Lingg&Janke switching actuator 9-fold A9F16H-E: More details
Switching actuator with 230 V signal inputs, programming via ETS software. EAN: 4260049684968.
