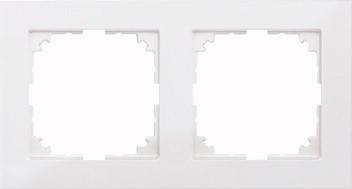

Merten Frame 2fold MEG4020-3619

Manufacturer: Merten
Description: 2fold frame polar white
Type: MEG4020-3619
Number of units: 2
Mounting direction: horizontal and vertical
Number of units horizontal: 2
Number of units vertical: 2
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: no
Material: Polycarbonate
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK02
Mounting type: clamp mounting
Width: 83 mm
Height: 154 mm
Depth: 12 mm
Installation width: 0 mm
Installation height: 0 mm
Drilling diameter (opening): 60 mm

Merten Frame 2fold MEG4020-3619: additional details
For vertical and horizontal mounting. Material thermoplastic glossy. Color polar white. Cradle to Cradle CertifiedTM.
