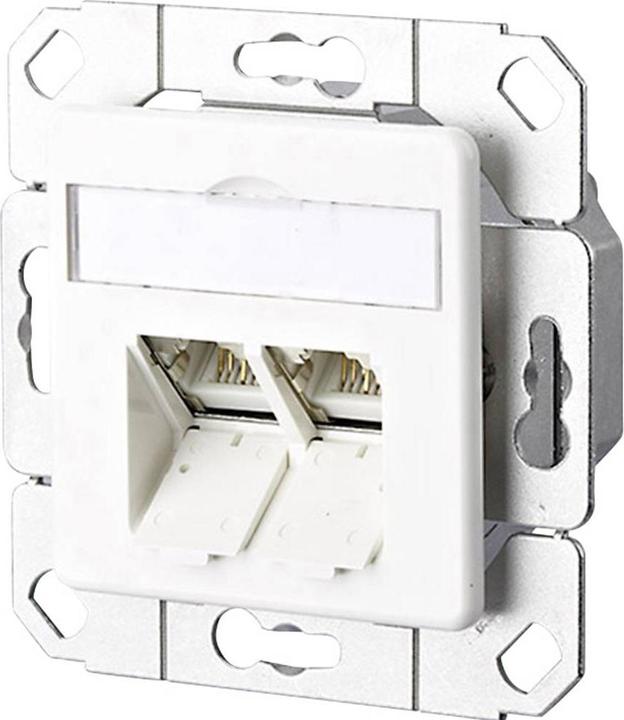

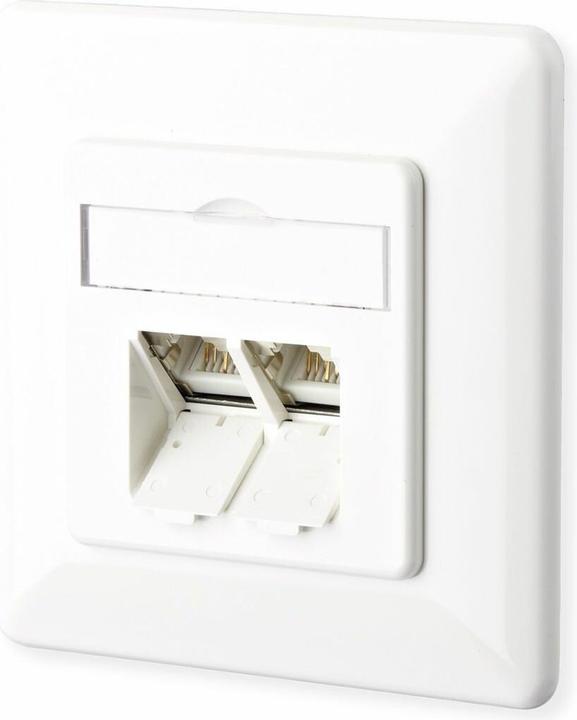

Metz Connect Connection Box C6A Upk 130C381102-I

Manufacturer: Metz Connect
Designation: Connection Box C6A Upk 2xRJ45, Upk, white
Type: 130C381102-I
Surface Mounting: no
Flush Mounting: yes
Channel Installation: yes
Floor Tank/Underfloor Mounting: no
Mounting Method: screws
Composition: Base element with central cover plate
Connector Type: RJ45 8(8)
With Sockets/Couplings: yes
Suitable for Number of Sockets/Couplings: 2
Category: 6A (IEC)
Color: pure white
RAL Number: 9010
Connection Type: LSA
Shielded Sockets: yes
Shielded Housing: yes
Separate Grounding Connection: no
With Text Field: yes
Design Capable: yes
Separate Cable Strain Relief: yes
Mounting Type Shield Connection: Screw
Outlet Direction: angled
With Dust Protection: yes
Mechanical Coding: no
Color Coding: no
Device Width: 69.9 mm
Device Height: 69.9 mm
Device Depth: 39.5 mm

Metz Connect Connection Box C6A Upk 130C381102-I: additional details
Compact connection box for building a passive network infrastructure with the highest quality standards. The connection box is suitable for connecting telephones as well as 10 Gbit networks and power supply with PoE up to 90W. The very robust zinc die-cast connection box can be easily and quickly connected by the installer without errors using an LSA termination tool. In addition to permanent manufacturing quality control, independent testing laboratories confirm the very good quality with various certificates. The connection boxes are delivered in retail-friendly, separable cardboard packaging with 10 pieces each. Variants, Mounting Type: AP, UP, UPk, UP0, Variants, Number of Ports: 1, 2.
