MSW High Frequency Concrete Poker with converter - 1200 W - 40 x 34.5 mm - 230 V
Price in EUR including VAT
Supplied by
expondo.de DE
free shipping
High-frequency concrete vibrator with converter for effortless concrete compaction. The concrete vibrator with integrated frequency converter from MSW is the ideal solution for professional concrete compaction. The 1200 W motor generates powerful 12,000 vibrations per minute, corresponding to a frequency of 200 Hz. The 40 x 34.5 mm bottle body effectively removes even very fine air bubbles. Particularly convenient: thanks to the integrated converter, you can connect the bottle vibrator directly to the AC power supply and start working immediately. The concrete vibrating bottle comes with a 5 m long hose and a 15 m long cable, allowing for versatile use with maximum freedom of movement. The work is made particularly gentle with the internal vibrator due to the motor built into the bottle body, which transmits vibrations directly to the concrete. This minimizes the workload and force required when using the concrete vibrator. For safe operation, the bottle vibrator features protection classes IPX8 (waterproof) for the bottle body and IPX5 (splash-proof) for the converter, as well as an overheating protection for the motor.
Technical details:
Frequency: 50 Hz
Voltage: 230 V
Material: Stainless steel, rubber, copper
Applied force: 3.2 kN
Power: 1200 W
Hose length: 5 m
Bottle body size: 40 x 34.5 mm
Rated speed: 12,000 RPM
Vibration frequency: 200 Hz
Cable length: 15 m

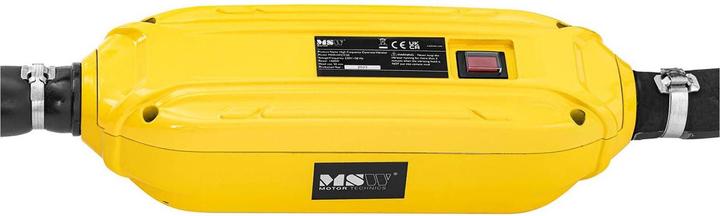

IP protection class: IPX8 (bottle body) / IPX5 (converter)
Delivery includes:
Concrete vibrator MSW-HFCV-40, operating manual.
Stirrer diameter | 1380 mm |
Length | 0.10 m |
Power | 1200 W |
Item number | 46924357 |
Manufacturer | MSW |
Category | Paddle mixers + Mortar mixers |
Manufacturer no. | MSW-HFCV-40 |
Release date | 27.6.2024 |
Stirrer diameter | 1380 mm |
Power supply | Electrical connection |
Mains voltage | 230 V |
Cable length | 15 m |
Power | 1200 W |
Max. Idle speed | 12000 rpm |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.10 m |
Width | 0.10 m |
Ingredients | High-frequency concrete vibrator with converter for problem-free concrete compactionThe concrete vibrator with integrated frequency converter from MSW is the ideal solution for professional concrete compaction. The motor with an output of 1200 W generates a powerful 12,000 vibrations/min or a frequency of 200 Hz. The 40 x 34.5 mm cylinder body removes even very fine air bubbles. Particularly practical: thanks to the integrated converter, you can connect the bottle vibrator directly to the AC power supply and get straight to work. The concrete vibrator bottle has a 5 m long hose and a 15 m long cable, both of which enable a wide range of applications with maximum freedom of movement. The motor built into the body of the bottle, which transmits the vibrations directly to the concrete, also makes employees using the internal vibrator particularly gentle. This minimises the workload and the force required when using the concrete vibrator. To ensure safe use, the bottle vibrator has protection classes IPX8 (waterproof) for the bottle body and IPX5 (protection against splash water) for the converter as well as overheating protection for the motor.Technical detailsFrequency: 50 HZVoltage: 230 VMaterial: Stainless steel, rubber, copperExerted force: 3.2 kNPower: 1200 WLength of hose: 5 mSize of bottle body: 40 x 34.5 mmNominal speed: 12 000 rpmVibration frequency: 200 HzLength of cable: 15 mIProtection class: IPX8 (bottle body) / IPX5 (converter)Scope of deliveryConcrete vibrator MSW-HFCV-40, operating instructions. |
