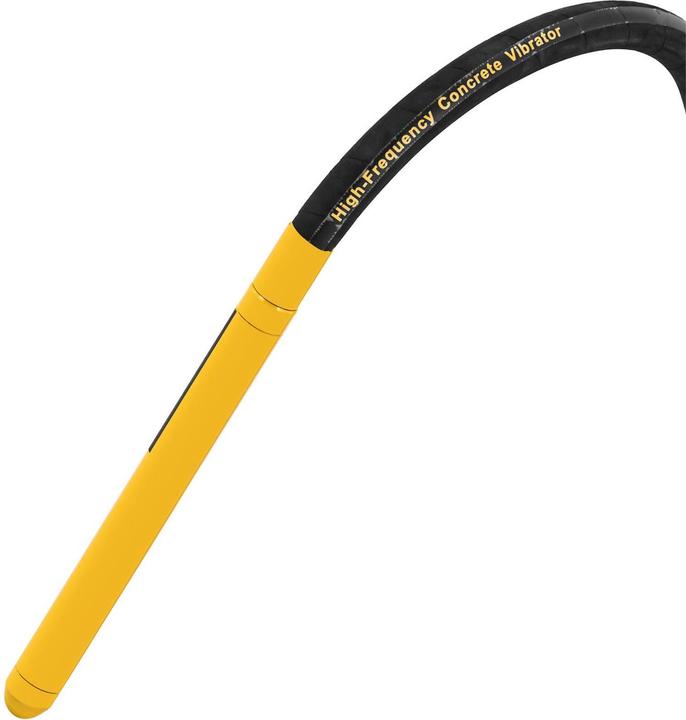

Powerful vibrating bottle for low-vibration work and optimal results. The concrete vibrator with integrated frequency converter from MSW is the ideal solution for professional concrete compaction. The 2000 W motor generates a powerful 12,000 vibrations per minute, corresponding to a frequency of 200 Hz. The 40 x 34.5 mm bottle body effectively removes even very fine air bubbles. Particularly convenient: thanks to the integrated converter, you can connect the bottle vibrator directly to the AC power supply and start working immediately. The concrete vibrating bottle comes with a 5 m long hose and a 15 m long cable, both of which allow for versatile use with maximum freedom of movement. The work is made particularly gentle with the internal vibrator due to the motor built into the bottle body, which transmits the vibrations directly to the concrete. This minimizes the workload and effort required when using the concrete vibrator. For safe operation, the bottle vibrator features protection classes IPX8 (waterproof) for the bottle body and IPX5 (splash-proof) for the converter, as well as an overheating protection for the motor. Combined with its robust construction, the vibrating bottle is low-maintenance and durable.

Technical details:
Frequency: 50 Hz
Voltage: 230 V
Material: Stainless steel, rubber, copper
Applied force: 3.2 kN
Power: 2000 W
Hose length: 5 m
Bottle body size: 40 x 34.5 mm
Rated speed: 12,000 rpm
Vibration frequency: 200 Hz
Cable length: 15 m
IP protection class: IPX8 (bottle body) / IPX5 (converter)

Scope of delivery:
Concrete vibrator MSW-HFCV-40-C, operating manual.
