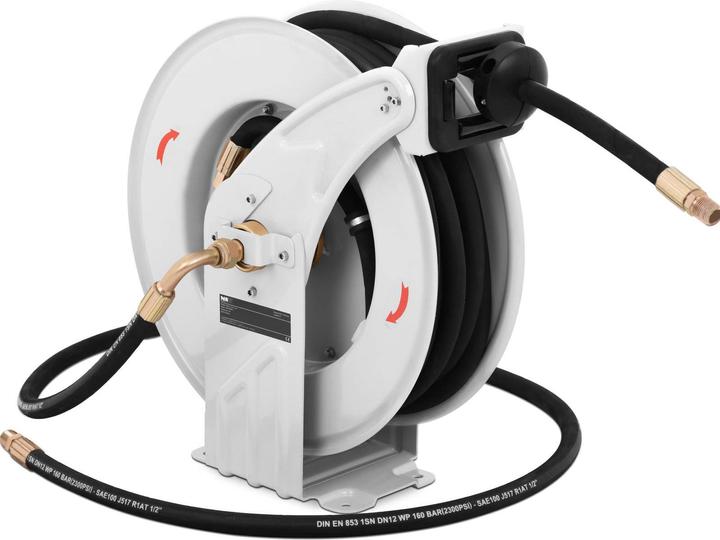

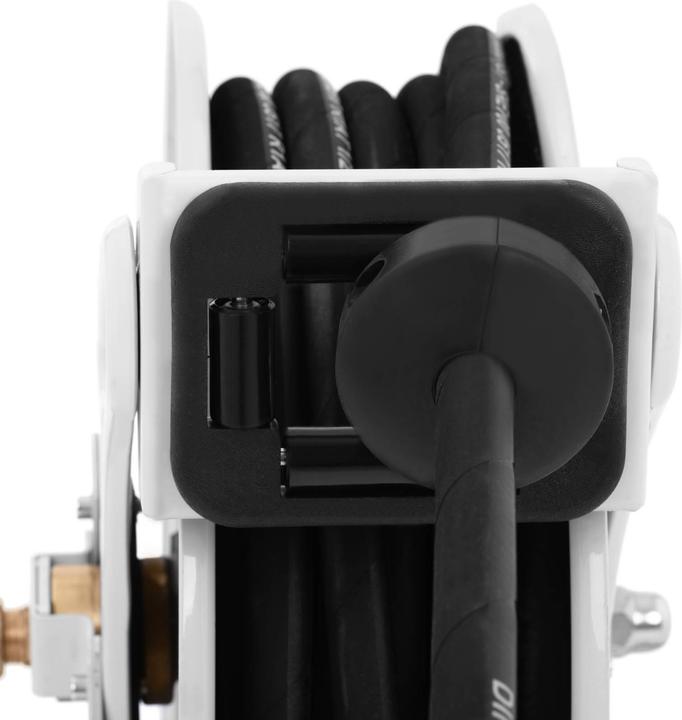

Order is half of life – easy winding and unwinding with the high-pressure hose reel. The automatic high-pressure hose reel MSW-PHR15 offers maximum comfort and safety when rolling up and unrolling the hose. The spring-driven drive function makes hose retraction quick, automatic, and easy. The locking positions allow you to pull the hose to any desired length. With the self-retracting hose reel, you can extend the distance up to 15 meters from your compressed air tool. Thanks to its clever design, the hose is wound in layers during retraction. When unrolling the hose, the reel locks in 25 positions, allowing you to easily unwind the desired hose length. To automatically rewind, simply pull the hose once, and it will retract fully automatically to the stop. With the increased reach and thus greater mobility, you can transport compressed air or even water with a maximum pressure of 180 bar to the desired location using the additional 15 meters. The HD hose remains flexible in use even with large temperature fluctuations. It operates flawlessly between -20 to 40 °C and can also transport water at temperatures up to 100 °C.

Technical details:
Housing material: powder-coated iron,

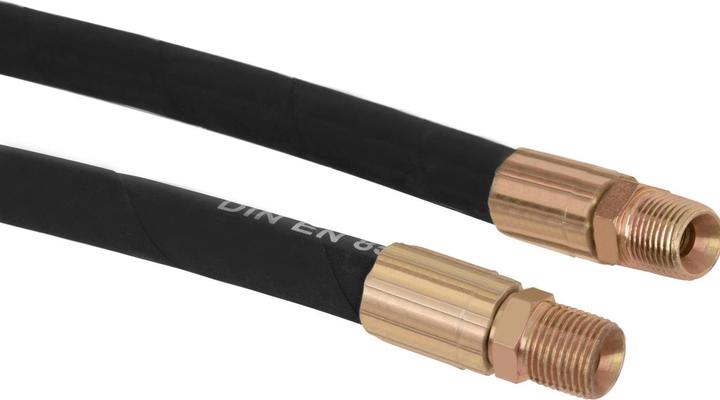

Hose material: rubber,
Hose length: 15 m,
Inner diameter of compressed air hose: 13 mm,
Outer diameter of compressed air hose: 21 mm,
Max. operating pressure: 180 bar,
Mounting thread: NPT 1/2'',
Temperature range: -20 to 40 °C.

Delivery includes: High-pressure hose reel MSW-PHR15.
