Product details

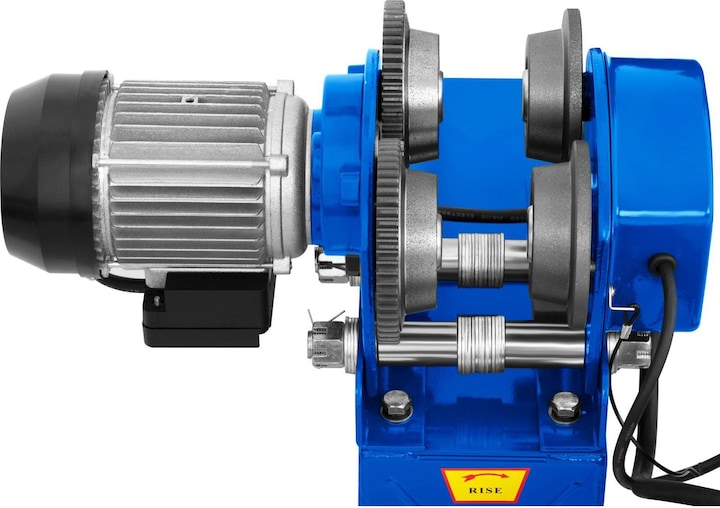

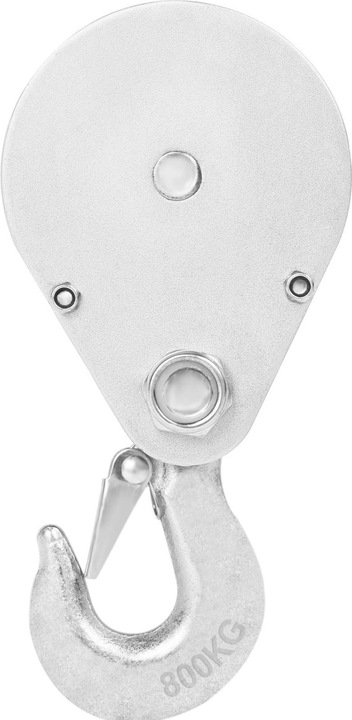

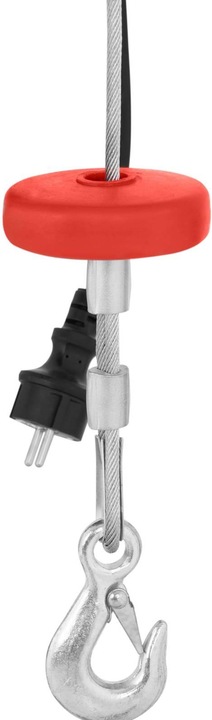

The electric hoist trolley from MSW is particularly suitable for use in large warehouses or enclosed spaces, as well as outdoors. Thanks to the fast sliding chassis with a speed of 13 m/min, you can transport loads with the trolley even on winding paths, as long as the turning radius is at least 1 m. The electric hoist operates with a 12 m long, sturdy steel cable that has a pulling force of 400 kg. Made from CK45, the cable is torsion-resistant, wear-resistant, and therefore particularly durable. By using the pulley, the pulling force increases to 800 kg. The lifting height then reaches 6 m, and the lifting speed is halved from 8 m/min to 4 m/min.
Rope hoist + workshop crane type | Portal Crane |
Load capacity | 800 kg |
Lifting height | 12 m |
Power supply | Electrical connection |
Weight | 35.50 kg |
Item number | 34280409 |
Manufacturer | MSW |
Category | Hoists + workshop cranes |
Manufacturer no. | PROCAT 800 |
Release date | 17.5.2023 |
Exact colour description | Blue |
Colour | Blue |
Material | Steel CK 45 |
Material group | Metal |
Rope hoist + workshop crane type | Portal Crane |
Load capacity | 800 kg |
Lifting height | 12 m |
Main Hub | 8 m/min |
Pivoting range | 360° |
Strand material | Tightrope |
Power supply | Electrical connection |
Cable length | 2.40 m |
Weight | 35.50 kg |
Specifications may include unverified machine translations.
