Niedax Universal fastening plate MTCUP 100 S

Manufacturer: Niedax
Designation: Universal fastening plate, screwless
Type: MTCUP 100 S
Design: Horizontal/vertical
Plate height: 94 mm
Plate width: 10 mm
Type of fastening: Clamp fastening
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Strip galvanized

The Niedax universal fastening plate MTCUP 100 S is designed for mesh cable trays and allows for screwless floor mounting in trays with at least two longitudinal wires spaced centrally at 50 mm for stirrups.

This plate is suitable for bracket clamp installations, separating bar, and cable tie fastenings. It can be mounted laterally on mesh cable trays with at least two lateral longitudinal wires spaced centrally at 25 mm, allowing for the installation of junction and branch boxes as well as cable glands. To secure against levering out, the lug can be folded down using a screwdriver.

Use for:

• Floor mounting mesh cable trays MTC..., MTS..., GR..., GRS..., and GRC... from width 100 mm
• Side-mounted mesh cable trays MTC 54..., MTC 105..., MTS..., MTCG 50.100, GR 60..., GRS 60..., and GRC 60...

Dimensions (approx.):

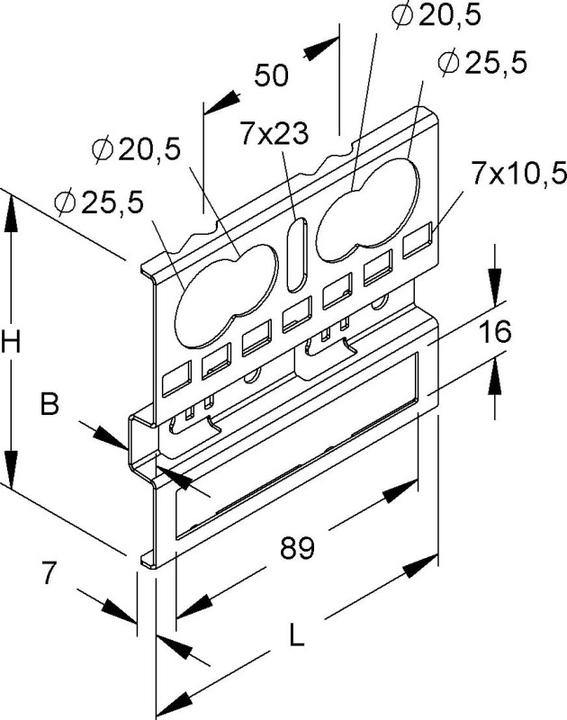

H x W x L: 94 x 10 x 104 mm
For wire diameter: 3.9 - 6 mm
Base mounting central longitudinal wire spacing: 50 mm
Side mounting central longitudinal wire spacing: 25 mm
Central vertical slotted holes: 7 x 23 mm
Cable gland holes: Ø 20.5 mm and Ø 25.5 mm
Cable tie/distributor and junction box perforations: 7 x 10.5 mm
Bracket clamp outlet: 16 x 89 mm

Material: Steel, strip galvanized according to DIN EN 10346
EAN: 4013339191826.
