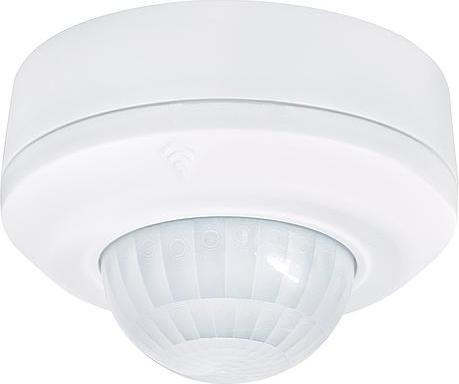

HF/presence detector Swiss Garde 360 Master Dualtec with dual technology, detection behavior selectable by five different logical combinations of PIR and HF, external push-button input, as well as full and semi-automatic mode. It features a potential-free switching output, a maximum of 10 slave detectors to increase the detection range, an adjustable twilight switch (5-2000 lux), and a time setting of 10 seconds to 20 minutes. The short time pulse is 1 second, and the detection range is 360°. Power consumption is 1.3W, with a transmission frequency of 5.8 GHz and a temperature range of -20°C to +40°C. The switching capacity includes incandescent and HV halogen lamps (2300W), fluorescent lamps and LV halogen lamps with transformer (1150VA), as well as LED lamps (350W), 230V, IP54.

Range presence Ø7m, movement Ø40m, mounting height 2-4m, suitable for indoor and outdoor mounting, dimensions Ø130x83mm.

Technical data

EAN: 3505100254751

Product group: Insulating switchgear/movement

Manufacturer: Niko

Supplier article number: 25475

Colour: White.
